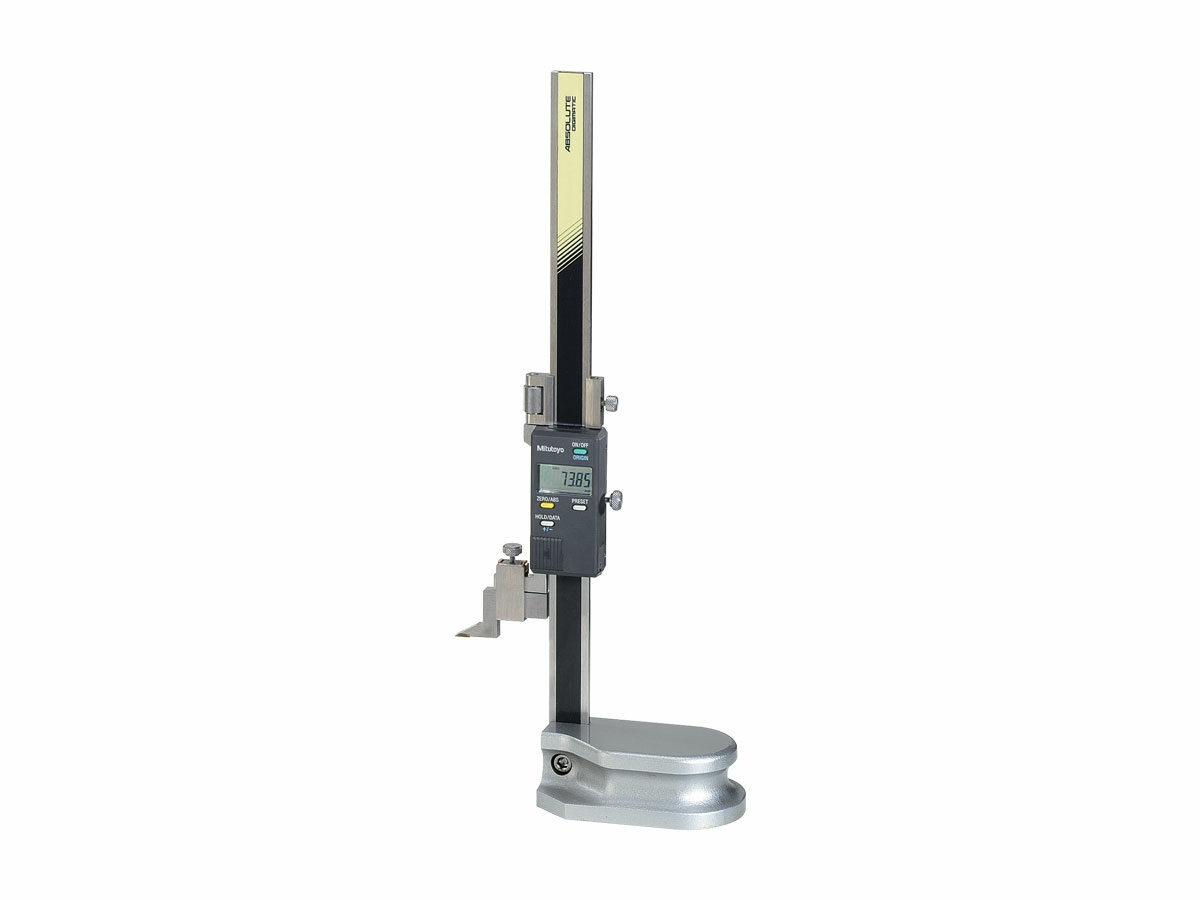

Высотомер ABSOLUTE Digimatic с датчиком линейных перемещений ABSOLUTE

Высотомер Mitutoyo ABSOLUTE Digimatic с линейным энкодером ABSOLUTE обеспечивает высокоточные измерения высоты в удобной и простой в использовании системе. Измерения отображаются на большом ЖК-дисплее.

Доставка импортных компонентов по России от 3х недель транспортными компаниями СДЭК, Деловые Линии, Major Express.

Оплата физическими и юридическими лицами безналичным расчетом.

Цена может измениться после запроса у поставщика!

The highly accurate Mitutoyo ABSOLUTE digital height gage uses a built-in ABSOLUTE linear encoder which eliminates the need to set the reference point during every power-on. The hand-operated slider with fine adjustment carriage offers smooth movement and precise measurement. Includes a carbide-tipped long scriber that provides highly durable and extremely accurate marks on your workpiece.

Available in Metric and Inch/Metric models
Fine adjustment carriage for smooth movement
Metric models are available in ranges: 0-200mm and 0-1000mm
Inch/Metric models are available in ranges: 0-8”/0-200mm and 0-40”/0-1000mm
SPC output function with optional water-resistant SPC cable provides quick and easy data management in real time
ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the gage is powered on, overspeed errors are also eliminated
Display features large LCD characters (11mm in height) for easier measurement reading and reduces eye strain
Large function buttons on display are positioned for easy operation
Durable, rigid construction ensures repeatable measurements over a longer lifespan
Base is shaped to provide a secure grip
Functions include Origin setting, ABS/INC switching, Presetting, -/+ switching, Data hold, Data output, and inch/mm conversion (on inch/metric models only)
Alarm: Low Voltage, Counting Value Composition Error

Order No.:	Product Image:	Units:	Range:	Resolution:	Accuracy:	Mass:	Fine Feed:	Required Accessories:	Optional Accessories:

Order No.:

570-227		Metric	0-200mm	0.01mm	±0.03mm	1.4kg	4mm	—
570-230	—	Metric	0-1000mm	0.01mm	±0.07mm	16.8kg	6mm	—
570-244	—	Metric, Inch	0-200mm / 0-8″	0.01mm / 0.0005″	±.001″	1.4kg	0.16″	—
570-248	—	Metric, Inch	0-1000mm / 0-40″	0.01mm / 0.0005″	±.003″	16.8kg	0.24″	—

570-227

570-230

570-244

570-248

Технические характеристики

Technology:	Digimatic
Length Standard:	ABSOLUTE electrostatic capacitance type linear encoder
Max Response Speed:	Unlimited
Display:	LCD
Battery:	SR44 (1 pc.) 938882
Battery life:	Approx. 5,000 hours under normal use
SPC Output:	Yes
