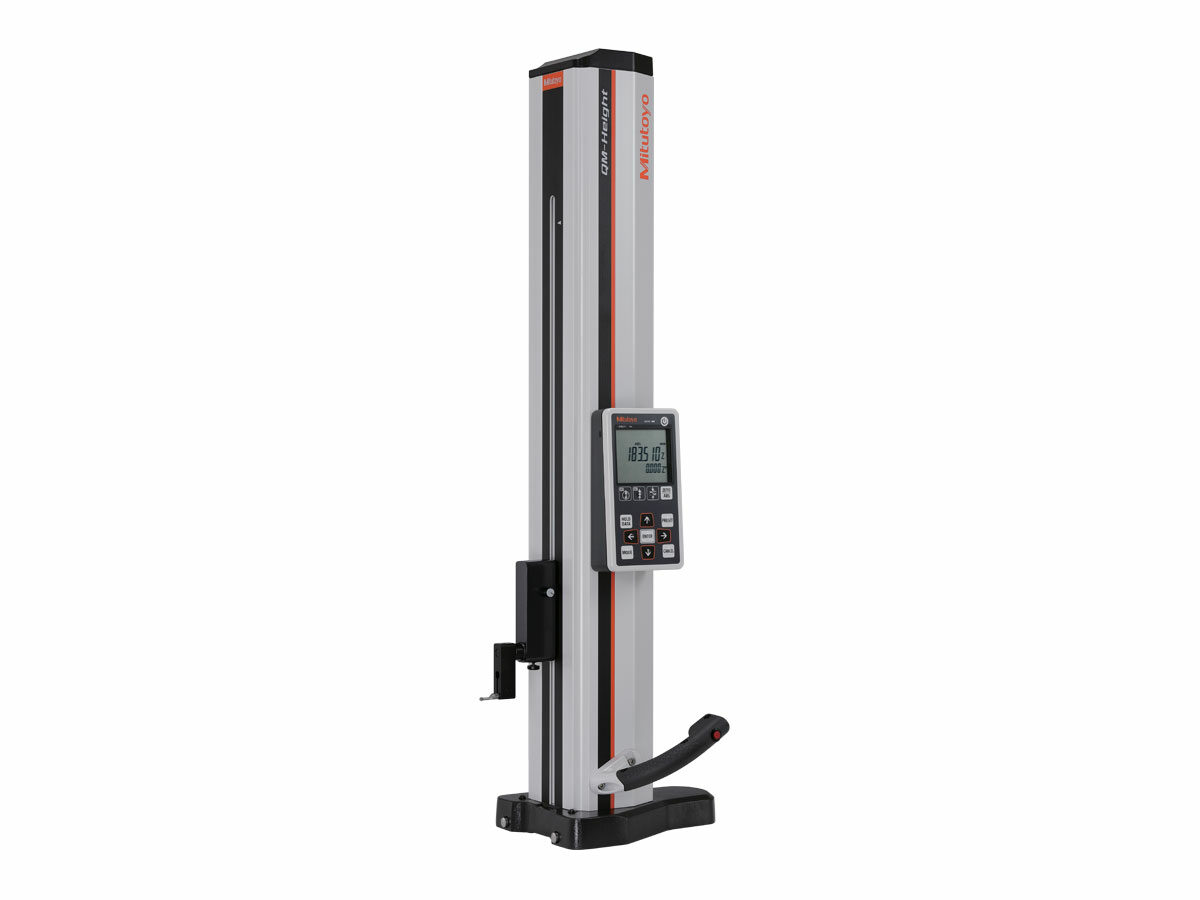

The Mitutoyo QM Height high-performance height gage takes height, step, inside and outside widths, inside and outside diameters, and circle pitch with great precision. Perform Go/No-go judgements by setting upper and lower tolerances, and out-of-tolerance measurements change the display background from green to red for quick reference. The QM Height»s ABSOLUTE electromagnetic induction-type linear scale maintains the measurement position until it is reset by the operator.
- Available in Inch/Metric models
- Available with two different perpendicularity ratings
- Various types of optional probes are available
- SPC capability and USB data port provides the option of data output for real-time measurement analysis
- ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on, overspeed errors are also eliminated
- Travel is performed with a slider elevation knob while a wheel is used for measurements
- Large, back-lit LCD screen features easy reference icon keys for better usability
- Roller bearing guiding method provides smooth movements
- Operates using an AC adapter and rechargeable Ni-MH battery
| Order No.: | Product Image: | Units: | Range: | Mass: | Floating Method: | Dimensions: | |
|---|
| 64PKA094B | — | Metric, Inch | 0-465mm / 0-18″ | 55.16 lbs / 25kg | N/A | 41.85 X 21.85 X 18.94″ / 1063 X 555 X 481mm |
| 64PKA095B | — | Metric, Inch | 0-715mm / 0-28″ | 63.93 lbs / 29kg | N/A | 51.02 X 21.85 X 18.94″ / 1296 X 555 X 481mm |
| 64PKA129B | — | Metric, Inch | 0-465mm / 0-18″ | 57.32 lbs / 26kg | Included (for movement only) | 41.85 X 21.85 X 18.94″ / 1063 X 555 X 481mm |
| 64PKA130B | — | Metric, Inch | 0-715mm / 0-28″ | 66.14 lbs / 30kg | Included (for movement only) | 51.02 X 21.85 X 18.94″ / 1296 X 555 X 481mm |
| 64PKA094B |
| 64PKA095B |
| 64PKA129B |
| 64PKA130B |
Технические характеристики
| Technology: | Digimatic |
|---|
| Display: | LCD |
|---|
| Battery life: | 1,200 hours (not using pneumatic floating system) / 90 hours (using pneumatic floating system) |
|---|
| SPC Output: | Yes |
|---|
| Units: | Inch, Metric |
|---|
| Selectable resolution: | Yes |
|---|
| Accuracy: | ±2.4 + 2.1L/600µm |
|---|
| Repeatability: | 2σ≤1.8µm |
|---|
| Guide Method: | Roller bearing |
|---|
| Drive Method: | Manual operation |
|---|
| Scale Type: | Electromagnetic induction-type ABSOLUTE linear encoder |
|---|
| Data output: | D2 |
|---|
| Power Supply: | AC adapter battery, Nickel metal hydride battery (X4) |
|---|
| Resolution: | .001, .005mm |
|---|
| Required Accessories: | — |
|---|
| Optional Accessories: | 05HAA394, 05HZA173, 12AAA788, 12AAA789, 12AAA792, 12AAA793, 12AAA837, 12AAB552, 12AAC072, 12AAF667, 12AAF670, 12AAF671, 264-504-5A, 936937, 957261, 957262, 957263, 957264, 957265, 965014 |
|---|
