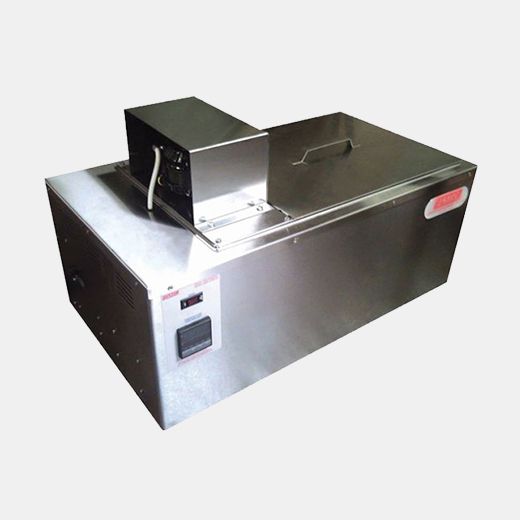

Oil High Temperature Bath (Ambient +5°C to 300°C) is manufactured in Australia with high quality stainless steel for easy maintenance and excellent durability. With a choice of temperatures up to +200°C or +300°C. A top mounted stirrer maintains even temperature through forced oil flow. Using an internal element and submerged RTD sensor connected to a digital temperature controller, temperature can be controlled to 0.1C. The bath is supplied with a perforated tray which covers the element and allows even circulation of the contents of the bath.
Features:
- Choice of temperatures up to +200°C or +300°C
- All stainless steel construction
- Top mounted stirrer for even temperature through forced oil flow (120mm of opening is lost due to stirrer — so opening dimensions become 380 x 270 x 170mm)
- Digital PID microprocessor controller
- 30L capacity
- Custom sizes also available
- Flat lift-off stainless steel lid as standard
Additional options — A flat lid is supplied and gabled, flat, acrylic or stainless lids available, manual reset over temperature thermostat, programmable controllers, 0-300 hr timer, inlet/ outlet pump, drains, large capacity and custom size models are available. Data logging — When optioned the controller can be connected via RS232/ RS485 communication ports which can be connected directly to a data logger or computer to collect this information. Software is available for programming and monitoring.
Controller — A digital display temperature controller controls the temperature within the range ambient +5°C to 300°C.
Specifications:
Product
BOB1
BOB2
Capacity
30L
Internal Dimensions (L x W x H)
500 x 270 x 170mm
(380 x 270 x 170 with stirrer)
External Dimensions (L x W x H)
870 x 370 x 300mm
Temperature Controller
Digital PID Controller, Pt 100 ohms sensor
Temperature Range
Ambient +5°C to 200°C
Ambient +5C to 300°C
Temperature Setting Accuracy
0.1°C
Temperature Fluctuation
±2°C
Heating System
Electric Element
Material
Interior and exterior — Stainless Steel
Options
Flat or gabled lid in either stainless or polycarbonate, pump out facility, manual reset over heat cut off, top mounted stirrer, circulating pump, refrigerated models.
Safety Features
Over temperature alarm, temperature protection cut off, earth leakage breaker (ELB)
Power
1500W
2400W
Weight
24kg
25kg
