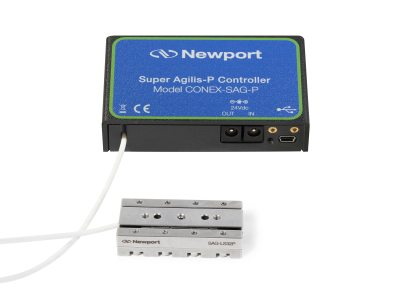

The Super Agilis™ CONEX-SAG-LS32P is a piezo motor linear stage integrated with a closed-loop piezo motor controller/driver that provides 32 mm travel and up to 10 mm/sec speed. The compact linear stage has a built-in direct read linear encoder enabling high position repeatability, for sample positioning, as an optics inserter, for focusing, etc. The innovation in this encoder technology allows the footprint to be maintained while delivering sub-micron bi-directional repeatability.
Технические характеристики
- Travel Range 32 mm
- Axes of Travel X
- Centered Load Capacity 30 N
- Maximum Speed 10 mm/s
- Minimum Incremental Motion 25 nm
- Vertical Load Capacity 2 N
- Holding Force 3 N
- Bi-directional Repeatability, Typical 120 nm ( full stroke) / 25 nm ( scanning mode)
- Pitch, Typical 150 µrad
- Yaw, Typical 150 µrad
- Feedback Direct Encoder
- Bearings Crossed Roller Bearings
- Material Stainless Steel
- Weight 93g
- Operating Temperature 10 to 35°C
- Cable Length 1.5 m
