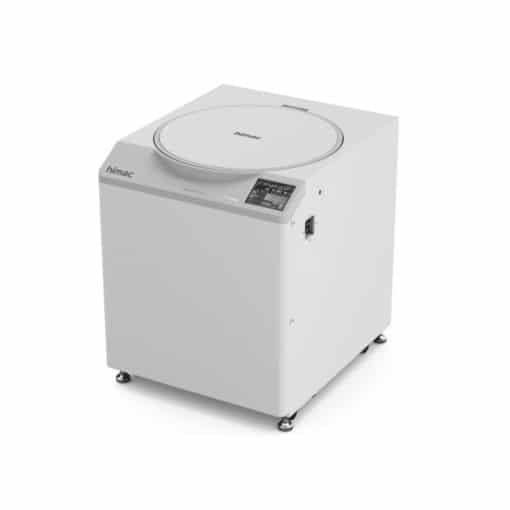

Product Description With high speeds up to 110,000 x g, this centrifuge reaches g-forces that cross into the range of ultracentrifugation, making it the optimal solution for laboratories with a broad application range. From harvesting of biomass via continuous flow to separation steps of small particles such as viruses, organelles, extracellular vesicles or nanoparticles, the outstanding versatility and performance of CR30NX covers them all. All rotors maintained 4C at maximum speed Industrys lowest noise high speed centrifuge New self-locking rotor system Dual sensor System for safe & secure operation Max Speed: 30,000rpm (R30AT angle rotor) Max Capacity: 6 X 1,000mL or 4 X 1,500mL Technical Specifications Model CR30NX Maximum speed 30,000rpm (R30AT angle rotor) Maximum RCF by swing rotor: 118,000Xg (R25ST2) ,,by angle rotor: 110,000Xg (R30AT) Max. Nominal Capacity 6L : R7A rotor (6 X 1,000mL) or R9A2 rotor (4 X 1,500mL) Speed Control Range 300rpm to 30,000rpm(*1) Temperature setting range -20 to + 40 Temperature Accuracy ±, 2(*2) Acceleration/ Deceleration mode Accel 11 modes, Decel 10 modes with 2 modes variable deceleration slope Program Function 1,000 programs Drive unit Induction Motor (Inverter) Refrigerator Rotary Inverter Driven Compressor (Refrigerant: R410A) Interface USB X 1, LAN X1 Display High-resolution 6.5 inch color LCD Keypad Touch sensitive LCD panel with GUI icons Safety devices Door interlock, dual-overspeed detector, imbalance detector,rotor cover detector,over-temperature detector Noise Level Less than 56(dBA) Applicable standard CE, cCSAus(*3) 1) EMC Directive EN61326-1 2)Product safety EN61010-1, EN61010-2-020 UL Std. No. 61010-1, UL Std. No. 61010-2-020 (*3) CAN/CSA-C22.2 No. 61010-1, CAN/CSA-C22.2 No. 61010-2-020 (*3) Power Requirement Single Phase, AC200/208/220/230/240V +/-10%, 50/60Hz, 30A Three-phase four-wire : AC 380 / 400 / 415V (*5), +/- 10%, 50/60Hz, 2 x 16A Heat Output Less than 1.2 kW(*4) Dimension 708mm(W) x 892mm (D) x 866mm (H) (height to table: 865mm) Weight 310Kg #gap-1162931771 { padding-top: 52px, } Download Product Brochure
Технические характеристики
Technical Specifications
Model | CR30NX |
---|---|
Maximum speed | 30,000rpm (R30AT angle rotor) |
Maximum RCF | by swing rotor: 118,000Xg (R25ST2) ,by angle rotor: 110,000Xg (R30AT) |
Max. Nominal Capacity | 6L : R7A rotor (6 X 1,000mL) or R9A2 rotor (4 X 1,500mL) |
Speed Control Range | 300rpm to 30,000rpm(*1) |
Temperature setting range | -20℃ to + 40℃ |
Temperature Accuracy | ± 2℃(*2) |
Acceleration/ Deceleration mode | Accel 11 modes, Decel 10 modes with 2 modes variable deceleration slope |
Program Function | 1,000 programs |
Drive unit | Induction Motor (Inverter) |
Refrigerator | Rotary Inverter Driven Compressor (Refrigerant: R410A) |
Interface | USB X 1, LAN X1 |
Display | High-resolution 6.5 inch color LCD |
Keypad | Touch sensitive LCD panel with GUI icons |
Safety devices | Door interlock, dual-overspeed detector, imbalance detector,rotor cover detector,over-temperature detector |
Noise Level | Less than 56(dBA) |
Applicable standard | CE, cCSAus(*3) |
1) EMC Directive | EN61326-1 |
2)Product safety | EN61010-1, EN61010-2-020 UL Std. No. 61010-1, UL Std. No. 61010-2-020 (*3) CAN/CSA-C22.2 No. 61010-1, CAN/CSA-C22.2 No. 61010-2-020 (*3) |
Power Requirement | Single Phase, AC200/208/220/230/240V +/-10%, 50/60Hz, 30A Three-phase four-wire : AC 380 / 400 / 415V (*5), +/- 10%, 50/60Hz, 2 x 16A |
Heat Output | Less than 1.2 kW(*4) |
Dimension | 708mm(W) x 892mm (D) x 866mm (H) (height to table: 865mm) |
Weight | 310Kg |
