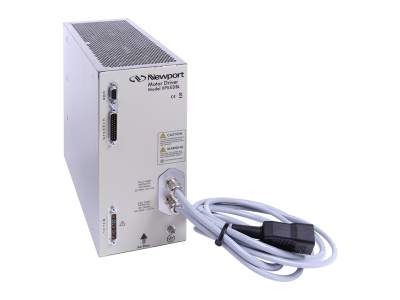

Designed for DC brushless motors, the XPS-EDBL is a 3-phase sinusoidal motor driver (amplifier) which features 25 A peak current and +96 VDC voltage, up to 1,000 watts of permanent power when optional fans are mounted. The high power, enables the XPS-EDBL to fully utilize the motor further maximizing the stage performance. The XPS-EDBL high-power driver is also well suited for use in an Industrial Environment. The driver is fully protected with a 150 W power resistor to dissipate regeneration energy (back EMF) and two optional fans limit the temperature increase.
Технические характеристики
- Drive Type Brushless DC
- Maximum Current 25 A
- Maximum Voltage 96 V
- Maximum Power Consumption 1200 W (with fans)576 W (without fans)
- Connector Type Motor: 9W4EOR: DB9XPS: DB25
- ESP Compatibility ESP Stage Detection
- Number of Axis 1
- Weight 14.8 lb6.7 kg
- Use External
