Features:
- Voltage Range: 1 mV to 300 V full scale, 12 ranges
- dB range: -72 to +52 dBm (0 dBm = 1 mW into 600 ohm)
- Frequency Range: 10 Hz to 10 MHz
- Response: responds to rms value (heating value) of the input signal for all waveforms
- Meter Accuracy: ±5% of full scale (10 to 50Hz), ±1% (50Hz to 1MHz), ±2% (1 to 2MHz), ±3% (2 to 3MHz), and ±5% (3 to 10MHz).
- Input impedance: 10 Mohms

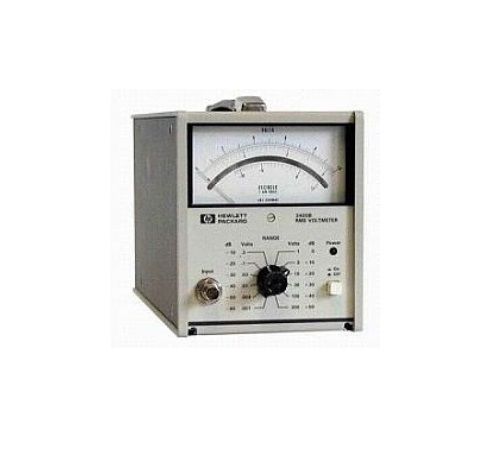

The Agilent HP 3400B is a a true root-mean-square voltmeter, True RMS Voltmeter, that provides a meter indication proportional to the dc heating power of the input waveform.
Технические характеристики
| Manufacturer | Agilent, HP, Keysight |
|---|---|
| Condition | Used |
| Volts | 300 V |
