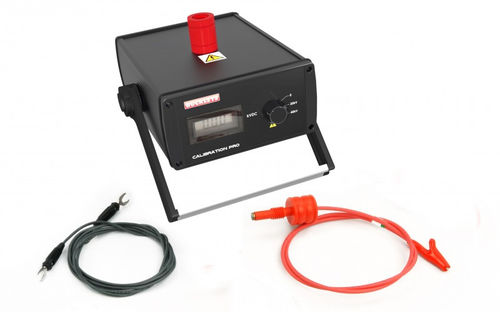

The Buckleys Calibration Meter Pro’ offers a quick, accurate and cost-effective method of checking the calibration state of high-voltage DC equipment. It has been primarily designed for use with the Buckleys’ PHD Pro’, PD and PHD range of Pinhole/Holiday Detectors but can also be used to ensure that other high voltage equipment is within specified tolerances. Powered by 4 x 1.5V AA batteries (supplied), the meter has a measurement range of 0-40kV (DC only) in two ranges with an accuracy of +/- 1%. An earth lead and a high voltage lead is included in the kit ensuring the unit is ready for use with all models in the Buckley s’ PD, PHD and PHD Pro’ ranges. Kit includes: Calibration Meter Pro’ including batteries 1 metre earth lead High voltage lead to fit PHD/PD/PHD Pro’ range A calibration certificate is included in the comprehensive Instruction manual. Technical Specifications: Accuracy: +/- 1% +/- 1 digit Voltage range 1: 0-20 kV Voltage range 2: 0-40 kV Input Impedance: 1200M Ohms Display: 3½ digit LCD Running time: 2000 hours plus Battery powered: 4 x 1.5v AA size Supplied with earth and 2 x high voltage leads Weight (unit only): 1.9kg Dimensions (unit only): 120 x 280 x 215 mm Packed weight: 2.7Kg Dimensions (packed): 37cm x 31cm x 30cm
Технические характеристики
CharacteristicsMeasured physical valuevoltageVoltage
Max.: 40,000 V
Min.: 0 V
