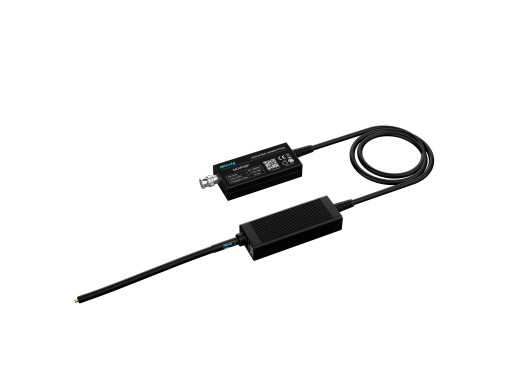

The SigOFIT MOIP05P is a optic fiber laser probe from Micsig that can measure small and large voltages, with a bandwidth of 500 MHz and a common mode up to 60kVpk. With this probe it becomes very easy to measure a gatesignal at a high-side FET or IGBT at 600V or even at 1200V, which previously was almost impossible. This probe is indispensible for the development of circuits with SiC & GaN technology, as it suppresses the oscillation caused by high-frequency common-mode noise without the use of redundant components. Furthermore the MOIP05P has a very low input impedance of <, 3pF, a very high common mode rejection ratio up to 100dB and a very accurate DC gain of 1%.
There are multiple attenuator tips available to test differential mode signals from ±,1.25V-±,2500V.
Model overview We offer 6 different models of the SigOFIT fiber probe, which differ in bandwidth, attenuation, rise time and output voltage: Model Bandwidth Rise time Output voltage Included attenuator tip Price MOIP01P 100 MHz &le, 3.5 ns ±, 2.5 V 10x attenuator tip 2159.1 €2,159.10 Excl. VAT MOIP02P 200 MHz &le, 1.75 ns ±, 2.5 V 10x attenuator tip 3329.1 €3,329.10 Excl. VAT MOIP03P 350 MHz &le, 1 ns ±, 1.25 V 20x attenuator tip 8999.1 €8,999.10 Excl. VAT MOIP05P 500 MHz &le, 700 ps ±, 1.25 V 20x attenuator tip 13499.1 €13,499.10 Excl. VAT MOIP08P 800 MHz &le, 438 ps ±, 1.25 V 20x attenuator tip 16919.1 €16,919.10 Excl. VAT MOIP10P 1 GHz &le, 350 ps ±, 1.25 V 20x attenuator tip 20069.1 €20,069.10 Excl. VAT Specifications System noise<, 1.41 mVrms Propagation delay15.42 ns DC gain accuracy1% Common mode voltage range60 kVpk Max input voltage (with max attenuation tip)5000 V Cable length2 m Weight2.2 kg Attenuation We offer multiple attenuator tips with which you can measure differential mode signals very accurately. Attenuator tipAttenuationDifferential voltage rangeInput impedance OP2020X±, 25 V9.47 M / 2.8 pF OP5050X±, 62.5 V9.47 M / 2.8 pF OP10001000X±, 1250 V12.28 M / 2.6 pF OP20002000X±, 2500 V30 M / 1 pF
To ensure optimal performance, all attenuator tips are pre-configured and calibrated specifically for your fiber probe. If you order a Micsig SigOFIT fiber probe together with an attenuator tip, the attenuator tip will be delivered already pre-configured and calibrated for the ordered fiber probe.
Note: if you wish to order an attenuator tip at a later time, this is still possible by sending us your Micsig SigOFIT fiber probe. However, this will lead to extra costs. More information about this matter can be found on the page below.
Buy your attenuator tips here Accessories The MOIP05P comes with:
- 1x USB type-C cable
- 1x Probe mount
- 1x 25 W USB charger
- 5x MCX-pitch adapter 2.54mm
- 5x MCX-pitch adapter 5.05mm
- 1x MCX coaxial assembly
- 1x 10X attenuator tip
- 1x Suitcase
