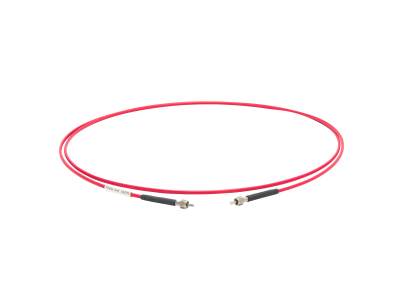

The 78254 UV-VIS Single Fiber Cable has a core diameter of 400 &mu,m supporting our and Bench-top Spectrometers. This version has 500 &mu,m cladding, and is 2 meter long with SMA connectors. For coupling directly to an IS , we recommend using no less than a 400 &mu,m core fiber, particularly if working in the UV.
Технические характеристики
- Type UV-VIS Large Core Fiber
- Core Diameter 400 m
- Cladding Diameter 500 m
- Numerical Aperture 0.22
- Transmittance Range 250 — 1150 nm
- Fiber Length 2 m
- Fiber Connector SMA
- Cable Diameter 4.8 mm
- Minimum Bend Radius 100 mm
