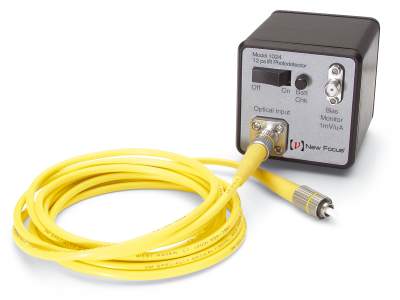

The 1024 Time Domain Optimized Ultra High-Speed Fiber-Optic Detector offers 12-ps full-width-at-half-maximum (FWHM) impulse responses for the ultimate in signal fidelity. This 500-1630 nm InGaAs photodetector is ideal for time-domain applications in high-speed digital fiber-optic communications systems, including bit-error-rate (BER) testing and characterizing modulators and other components. Wavelength range for the Model 1024 is 500-1630 nm.
Технические характеристики
- Detector Material InGaAs
- Device Type Biased Detector
- Detector Diameter 12 m
- Detector Type Schottky
- Wavelength Range 500-1630 nm
- 3 dB Bandwidth DC to 26 GHz
- Maximum Conversion Gain 10 V/W
- Responsivity 0.45 A/W
- Optical Input Fiber-optic (SM only)
- Fiber-Optic Connector FC/UPC
- Fiber Type Singlemode
- Rise Time 12 ps
- NEP 45 pW/Hz
- Saturation Power 2 mW
- Output Connector Wiltron K
- Output Impedance 50
- DC Bias Monitor Bandwidth 50 kHz
- DC Bias Monitor Transimpedance Gain 1 V/mA
- Power Requirements Internal 9-V battery
