last updated : 2018/12/31
| Code | Description | Budget Price | Ship. weight | Ship. vol. | ||
|---|---|---|---|---|---|---|
| WNEHSBFL2 | HOSE, SBR, FLAT for delivery, 2′, per meter | CH 9,22 | 0,3kg | 3,025L | Add | |
| WNEHSBFL3 | HOSE, SBR, FLAT for delivery, 3′, per meter | CH 12,93 | 0,72kg | 1,4L | Add | |
| WNEHSBFL315T | HOSE, SBR, FLAT, delivery, 3′, +2 threa. coup. male/fem, 15m | on request | 0kg | 0 | Add | |
| WNEHSBFL4 | HOSE, SBR, FLAT for delivery, 4′, per meter | CH 17,40 | 0kg | 0 | Add | |
General information
Hose for delivery only. Cannot be used for suction.
Fittings must be ordered separately.
Available roll lengths include 20, 30 and 40m. The total length will be adjusted, and the number of connectors adapted, to the number of supplied sections.
Quality varies, check prior to purchasing. Inquire about UV protection.
Specifications

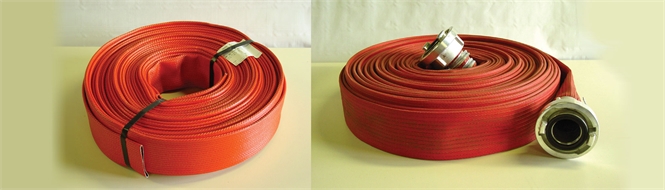

Pressure hose (high-quality, fireman quality):
Heavy-duty flat-lying delivery hose, abrasion-resistant.
Both ends fitted with Storz couplings (long hose tail)
Standard type:
- Outside: synthetic woven textile reinforcement, resistance to oil and gasoline, abrasion-resistant, flame-retardant
- Inside: encased in high tensile rubber
- Temperature range -25°C up to +60°C
- Operational pressure: 8 bar
Higher quality type:
- Inner tube in black plain SBR (Styrene Butadiene Rubber)
- Reinforcing braid in polyester
- External coating in TPE-U, smooth, red, finely and longitudinally ribbed
- Service pressure: 21 bars
Service temperature: -30°C to +70°C
