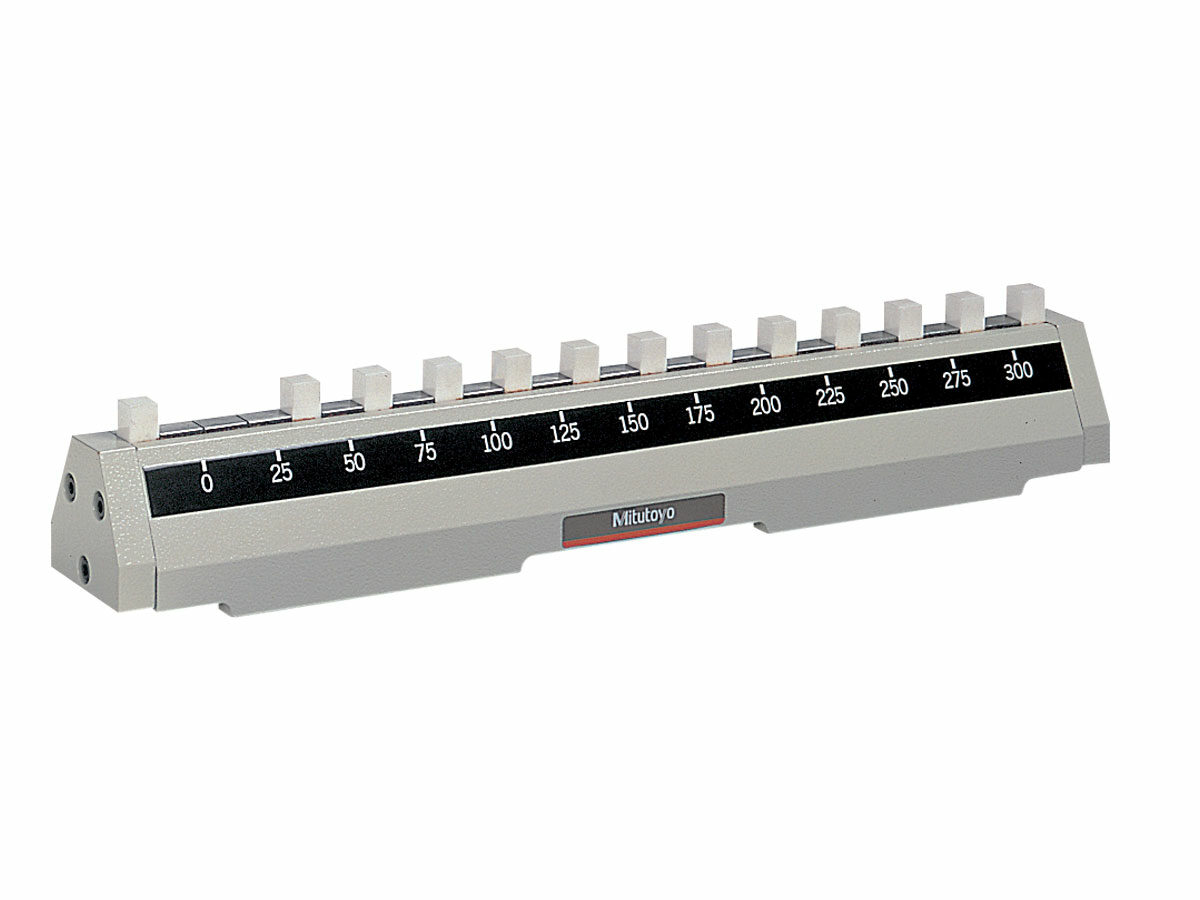

The Mitutoyo inside micro checker confirms the zero point of a tubular inside micrometer in order to provide repeatable reliable measurement results. The micro checker»s measuring blocks are constructed of highly durable zirconia-based ceramic that will not deteriorate or change dimensionally over time due to environmental conditions. The inside micro checker confirms measurements in 25mm increments.
- Available in two ranges: 300mm and 600mm
- Includes: 10mm auxiliary block, clamping element with V-rest and spacer for 8mm diameter measuring anvil
- Measuring blocks are constructed of zirconia-based ceramics for better durability
- The wooden case is an optional accessory
| Order No.: | Product Image: | Range: | Length to check: | Accessories: | |
|---|
| 515-585 | — | 12 — 300mm | 25, 50, 75, 100, 125, 150, 175, 200, 225, 250, 275, 300 | — |
| 515-586 | — | 12 — 600mm | 25, 50, 75, 100, 125, 150, 175, 200, 225, 250, 275, 300, 325, 350, 375, 400, 425, 450, 475, 500, 525, 550, 575, 600 | — |
Технические характеристики
| Technology: | Mechanical |
|---|
| Units: | Metric |
|---|
| Block pitch accuracy: | 1+L/150 |
|---|
