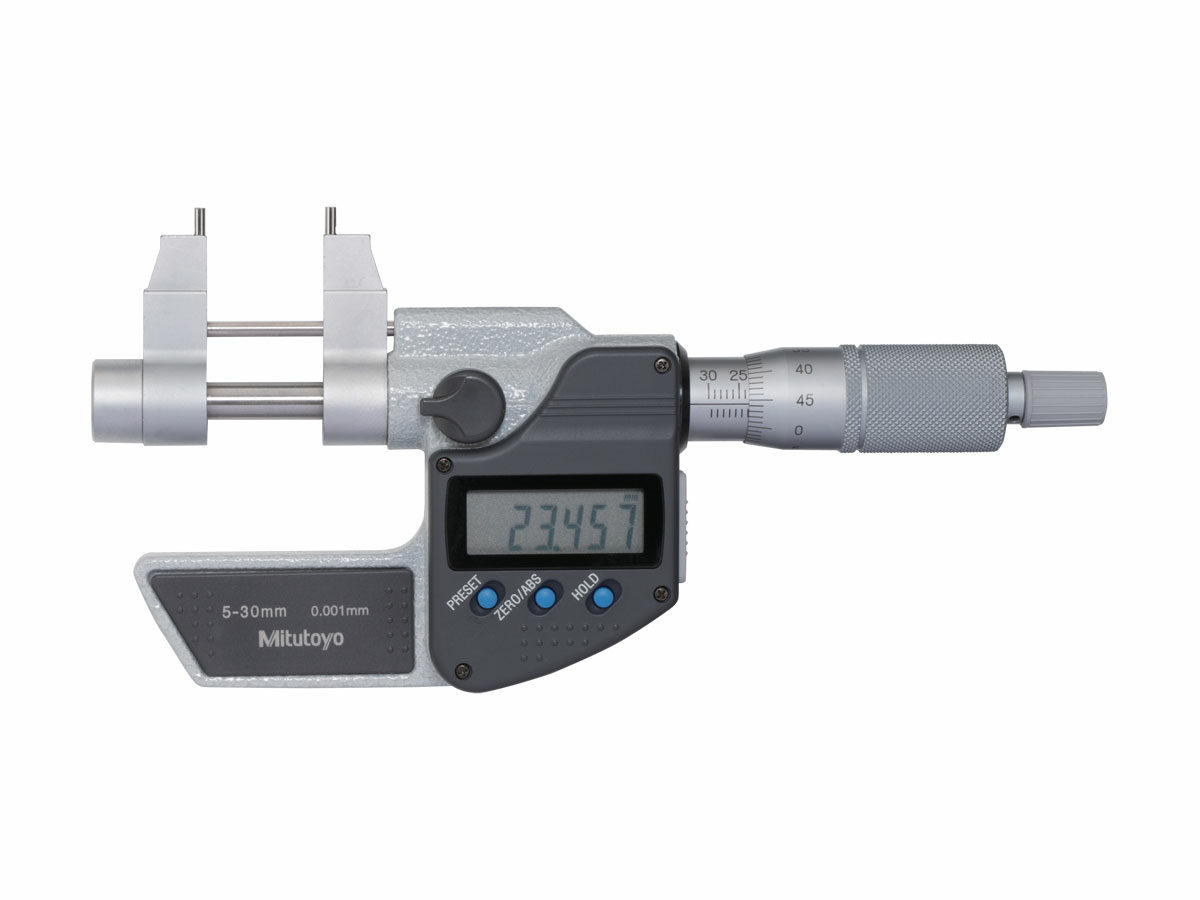

Внутренний микрометр Digimatic с штангенциркулем

Микрометр Mitutoyo Digimatic с цифровым штангенциркулем оснащен губками из высококачественной инструментальной стали для точного измерения внутренних диаметров, в том числе в труднодоступных местах, таких как канавки.

Доставка импортных компонентов по России от 3х недель транспортными компаниями СДЭК, Деловые Линии, Major Express.
Оплата физическими и юридическими лицами безналичным расчетом.
Цена может измениться после запроса у поставщика!

The Mitutoyo digital caliper-type inside micrometer provides the ability to measure inside dimensions with high accuracy and precision. Its caliper-type jaws are constructed of hardened steel for lasting durability and accuracy. A clamp locks the spindle for easier manual measurement readings. Measurements are displayed on an easy-to-read LCD readout.

  • Available in Metric and Metric/Inch models
  • Optional setting rings for zero point adjustment are available
  • A special holder is available to use with a Mitutoyo micrometer stand
  • SPC output function offers quick and easy data management in real time
  • Functions include Origin Setting, Zero Setting, Function Lock, 2 Presets, Data Hold, Data Output, and inch/mm conversion (on inch/metric models only)
  • Alarm: Low Voltage, Counting Value Composition Error
  • Frame has a low-glare satin-chrome and non-slip grip finish
  • Supplied in fitted plastic case, models over 175mm / 4″ supplied in wooden case

Order No.:Product Image:Units:Range:Resolution:Accuracy:Jaw Type:Accessories:

Order No.:

345-250-30Metric5 — 30mm0.001mm±5µmPin
345-251-30Metric25 — 50mm0.001mm±6µmAnvil
345-350-30Metric, Inch5 — 30mm / 0.2-1.2″0.001mm / 0.00005″±0.00025″Pin
345-351-30Metric, Inch25 — 50mm / 1-2″0.001mm / 0.00005″±0.0003″Anvil

345-250-30
345-251-30
345-350-30
345-351-30

Технические характеристики

Technology:Digimatic
Measuring Faces:Caliper Type
Display:LCD
Battery:SR44 (1 pc.) 938882
Battery Life:Approx. 2.4 years under normal use
SPC Output:Yes
Graduation:0.01mm / 0.001′
