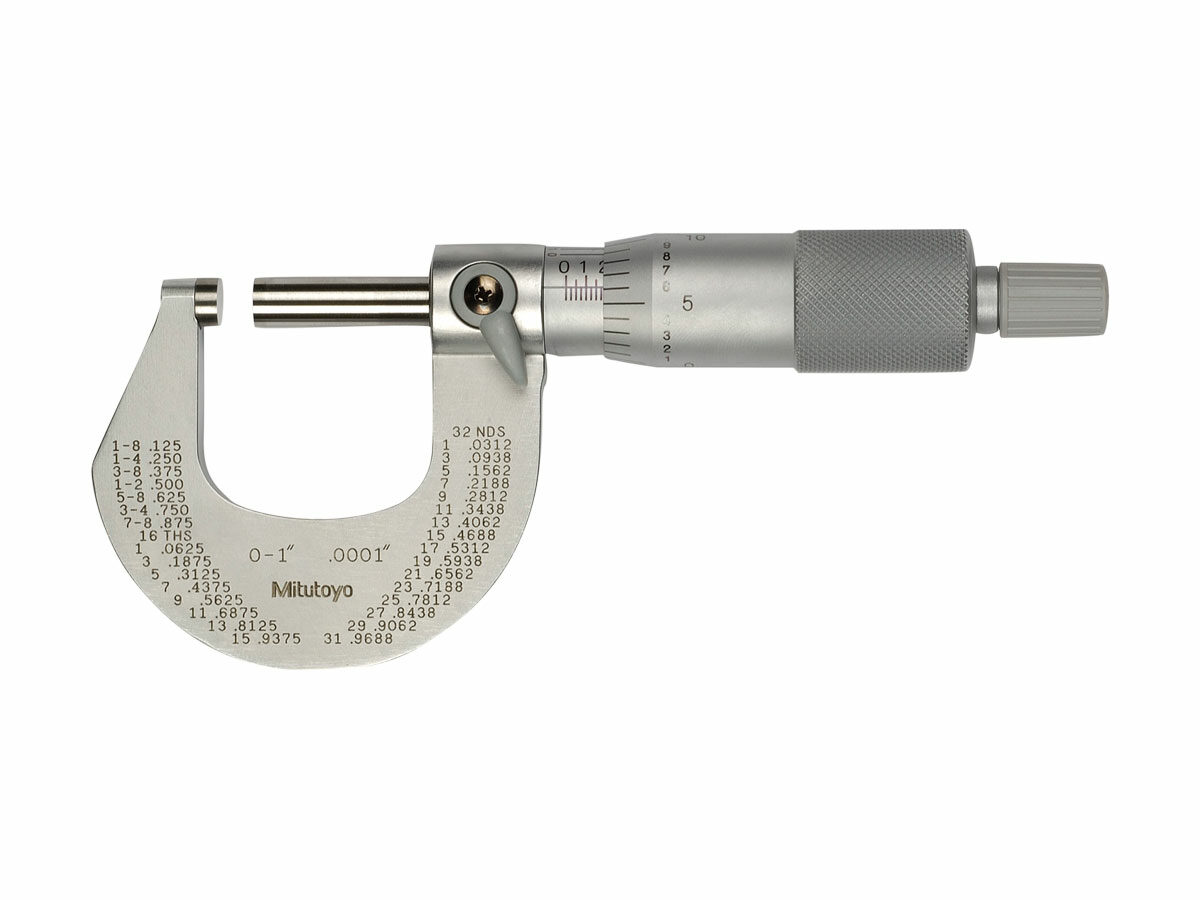

The Mitutoyo 101 series outside micrometer is ideal for measuring in tight spaces and narrow slots attributed to the taper of its frame on the anvil side. Available with a ratchet-stop mechanism or friction thimble for smooth, uniform pressure on a workpiece making it precise, repeatable measurements easier. The frame has a satin chrome finish for durability, and measurements are laser etched for easier reading.
- Carbide facing on the spindle and anvil resists wear to keep surfaces flatter with longer accuracy
- A spindle lock provides secure locking of the measurement position
- Measurements are laser etched on thimble for faster, easier readings
- Conversion charts are laser etched on the frame
- Satin chrome finish helps resist rust and reduces glare
- Includes a standard bar except for 0-1” models
- Supplied in fitted plastic case
| Order No.: | Product Image: | Range: | Accuracy: | Ratchet/Thimble: | Mass: | Parallelism: |
|---|
| Order No.: |
|---|
| 101-113 |  | 0-1″ | ±.0001″ | Ratchet Stop | 180g | 0.00008″ or less |
| 101-114 |  | 1-2″ | ±.0001″ | Ratchet Stop | 245g | 0.00008″ or less |
| 101-117 |  | 0-1″ | ±.0001″ | Friction Thimble | 180g | 0.00008″ or less |
| 101-118 |  | 1-2″ | ±.0001″ | Friction Thimble | 245g | 0.00008″ or less |
| 101-119 |  | 2-3″ | ±.0001″ | Ratchet Stop | 410g | 0.00008″ or less |
| 101-120 | — | 3-4″ | ±.00015″ | Ratchet Stop | 550g | 0.00012″ or less |
| 101-113 |
| 101-114 |
| 101-117 |
| 101-118 |
| 101-119 |
| 101-120 |
Технические характеристики
| Technology: | Mechanical |
|---|---|
| Units: | Inch |
| SPC Output: | No |
| Graduation: | 0.0001′ |
| Flatness: | — |
| Measuring Faces: | Carbide tipped |
