Description

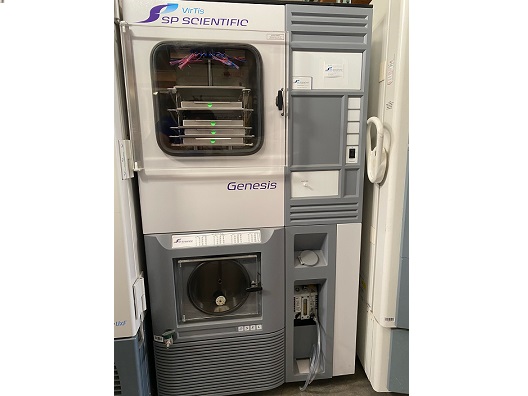

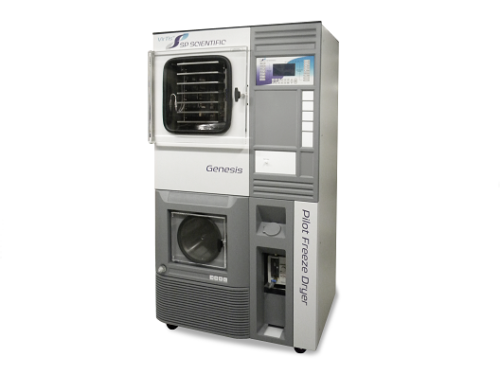

Compact, freestanding, mobile design. Easy scale-up from research to full production. Available with a Wizard 2.0 or LyoS™ control system. Optional hydraulic stoppering system available. Narrow and cleanroom configurations available with 8-inch vapor port.
Specifications:
Lowest shelf temp. (50 Hz / 60 Hz): ≤ -67°C / -70°C
Shelf temp. control range: -55 to 65°C
Shelf pull-down from 20°C to -40°C†: ≤ 30 minutes
Lowest condenser temp. (50 Hz/60 Hz): ≤ -82°C / -85°C
Maximum condenser capacity: ≥ 25 L
Maximum deposition rate: r ≥ 0.5 L/hour
Number of compressors: 2
Compressor horsepower: 1 hp, 1 hp
Vacuum time to 100 mTorr: ≤ 20 minutes
Vacuum rate of rise: ≤ 30 mT/hour
Lowest system vacuum: ≤ 15 mT
Temperature uniformity: ± 1.0°C
