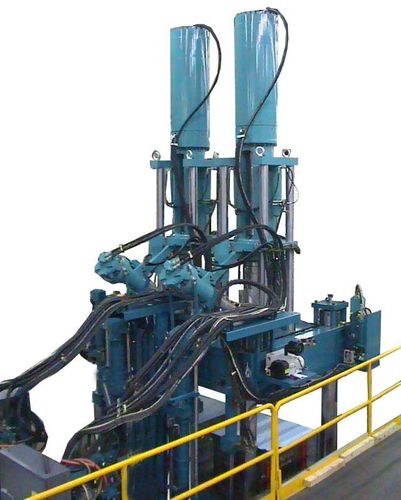

Designed for the manufacture of high-voltage insulators (550 kV), this press is one of the largest presses made by REP. The dimensions of the parts to be injected explain the huge size of the press: 660 mm in diameter, 2,600 mm long, moulded in one go. The production of a complete insulator is therefore performed in one or two cycles, thus significantly increasing the profitability and reliability of the parts. Machine features: — Closing force: 24,000 kN — Size of the platens: 1,500 x 3,000 mm — Injection volume: 25,000 cm³ x 2 (2 injection units)
Технические характеристики
CharacteristicsClosureverticalOperationhydraulicClamping force
24,000 kN
