Вернье внутри штангенциркуля

Специализированный штангенциркуль Mitutoyo Vernier доступен с точечными, остроконечными или внутренними канавками губками для получения высокоточных внутренних измерений в труднодоступных местах.

Доставка импортных компонентов по России от 3х недель транспортными компаниями СДЭК, Деловые Линии, Major Express.
Оплата физическими и юридическими лицами безналичным расчетом.
Цена может измениться после запроса у поставщика!

The Mitutoyo Vernier Specialized Inside Caliper is specially designed to measure inside dimensions that are otherwise hard to obtain with standard calipers. Available in point-type, knife-edge or inside groove jaws, this specialized caliper is capable of reaching into recesses, bore holes and grooves and provides precise, repeatable measurements. The caliper is constructed of hardened stainless steel with a satin chrome finish for protection and easy reading.

  • Available in Metric models
  • Raised sliding surfaces prevent defacement and wear of scale graduations
  • Jaws are tipped with carbide for better accuracy and longer performance
  • Constructed of corrosion-resistant, hardened stainless steel
  • Lock screw holds the sliding jaw position for accurate measurement
  • Most models are supplied in fitted plastic case, 18”/450mm and 24”/60mm models are supplied in a wooden case

Order No.:Product Image:Units:Range:Accuracy:Mass:Measurable minimum hole diameter:Remarks:

Order No.:

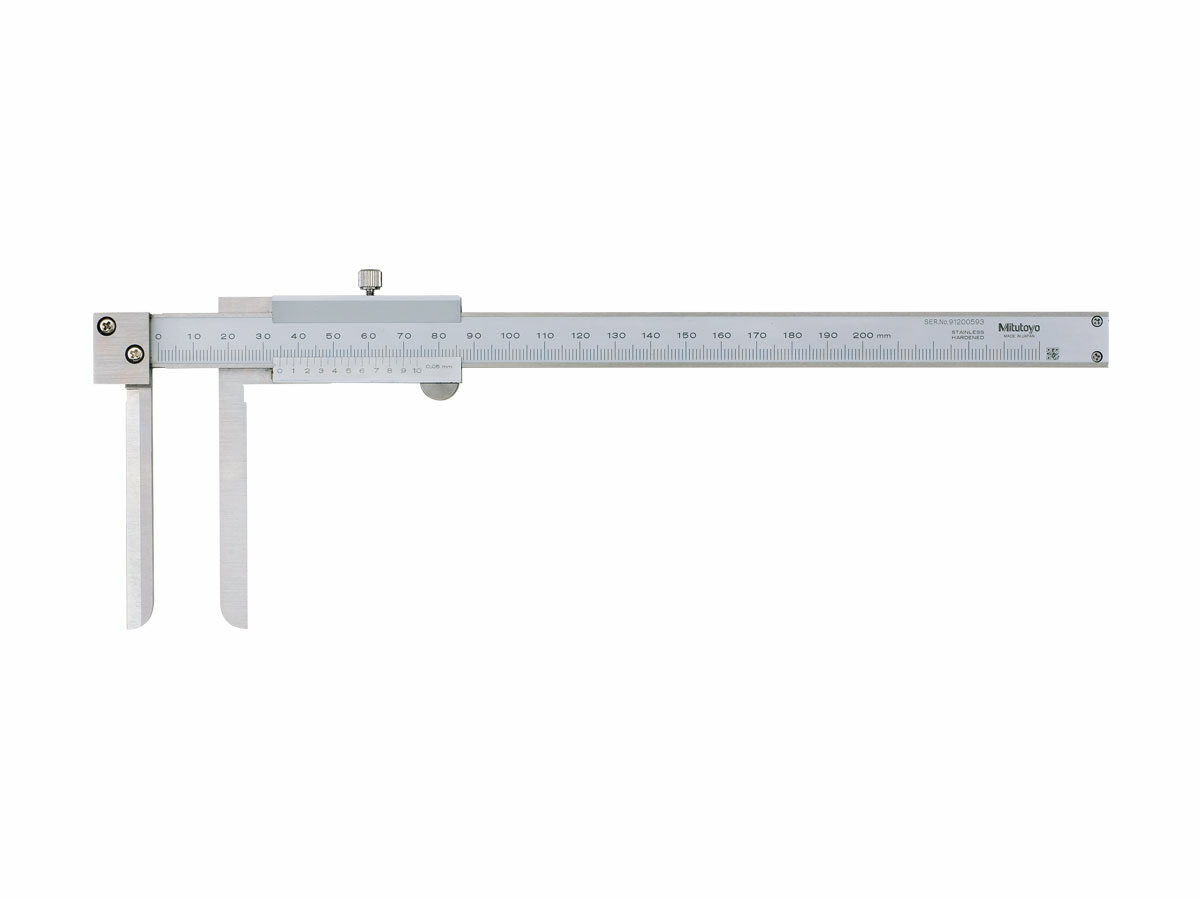

536-142Metric10-200mm±0.12mm210gØ10mmKnife-edge type
536-145Metric10.1-150mm±0.05mm130gØ10mmInside-groove type
536-146Metric20.1-150mm±0.05mm140gØ20mmPoint-jaw type
536-147Metric30.1-300mm±0.08mm370gØ30mmPoint-jaw type
536-148Metric70.1-450mm±0.10mm1250gØ70mmPoint-jaw type
536-149Metric70.1-600mm±0.12mm1430gØ70mmPoint-jaw type

536-142
536-145
536-146
536-147
536-148
536-149

Технические характеристики

Technology:Mechanical
Units:Metric
Graduation:0.05mm
