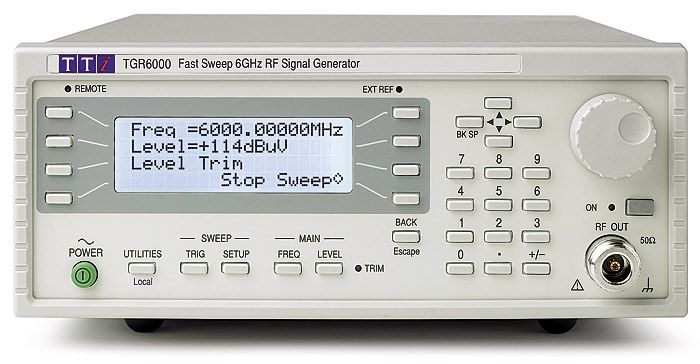

ВЧ-генератор TGR6000 Thurlby Thandar Instruments

Features:

• 10MHz to 6000MHz frequency range
• Accuracy better than 1ppm over 15°c to 30°c
• Ageing better than 1 ppm over one year
• External frequency reference input
• Low phase noise and low leakage
• -110dBm to +7dBm amplitude, 0.1dB steps
• Amplitude entry in dBm, µV / mV, or dBµV
• User compensation tables for specific test set-ups
• Fast stepping sweep with dwell times down to 10ms
• Internal or externally triggered sweep, lin or log, up or down
• List sweep of up to 1000 points of amplitude vs frequency
• Storage for 12 generator set-ups and 16 sweep lists
• Compact half-rack 2U casing uses minimum bench space
• Full remote control through RS232, USB, LAN or GPIB

Specifications:

• Frequency Range: 10MHz to 6000MHz
• Setting Resolution: 10Hz
• Accuracy/Stability: See Reference Frequency section.

Phase Noise

• 500MHz Carrier: &lt,-110dBc/Hz (typ) @ 20kHz offset &lt,-120dBc/Hz (typ) @ 100kHz offset
• 3GHz Carrier: &lt,-95dBc/Hz (typ) @ 20kHz offset &lt,-110dBc/Hz (typ) @ 100kHz offset
• 6GHz Carrier: &lt,-89dBc/Hz (typ) @ 20kHz offset &lt,-104dBc/Hz (typ) @ 100kHz offset
• Residual FM: 12 Hz @ 500MHz Equivalent peak deviation in a 300Hz to 3.4kHz bandwidth.

Level settings

• Level Range: –110dBm to +7dBm
• Setting Parameters: dBm, dBµV or µV/mV
• Setting Resolution: 0.1dB, 0.01uV to 1mV
• Setting Accuracy: ± 2dBm

The TGR6000 is a 6 GHz rf generator from Thurlby Thandar Instruments. The TGR6000 is a signal generator for CW and swept/stepped CW applications
