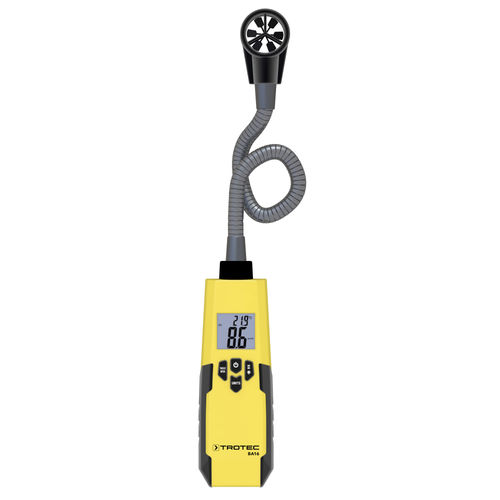

Measurements of air velocity, air temperature and air flow are easy with this flexible vane anemometer. The mobile device is ready to use and shows the readings easy to read on the large, backlit display. In addition, minimum or maximum value can be displayed as well as the current measured value will be retained. The flexible and adjustable 40 cm long gooseneck allows the measurement of the BA16 use in hard to reach places or remote supply and exhaust openings — ideal for example for HSK — installers for the measurements of discharge grilles, ducts and diffusers. Benefits in practise: Trotec: 100 % development, design, manufacturing Quick and easy measurement of air velocity , air temperature and air flow (m³/min => CMM) Best value for money Minimalwert-, Maximalwert- und Hold-Funktion Semi-flexible, 40 cm long gooseneck probe Backlit display Automatic switch-off Optimized practice German industrial design — protected design Functions: °C / °F, m/s, ft/min, m³/min (CMM), km/h, mph, kn Minimum and maximum value indicator Hold-function illuminated display Automatic switch-off Technical details: Speed Measuring range: 1.00 — 30.00 m/s, 196 — 5,900 ft/min, 3.6 — 108.0 km/h Resolution: 0.01 m/s, 1 ft/min, 0.1 km/h Accuracy: ± 3 % ± 0.2 m/s, ± 3 % ± 40 ft/min, ± 3 % ± 0.8 km/h Flow Measuring range: 0 — 999.9 m³/min (CMM) Resolution: 0.1 CMM Temperature Measuring range: -10.0 bis +60.0 °C (+140.0 up to +140.0 °F) Resolution: 0.1 °C (0.1 °F) Accuracy: ± 1.5 °C (± 3.0 °F) Dimensions without probe (l x w x h): 165 x 54 x 32 mm Power supply: 9 V IEC 6LR61 Weight: 270 g Scope of delivery: Measurement device, battery, carrying case, user guide
Технические характеристики
CharacteristicsTechnologyvaneOther characteristicswireless, portableAir velocity
Max.: 30 m/s (98.43 ft/s)
Min.: 1 m/s (3.28 ft/s)
