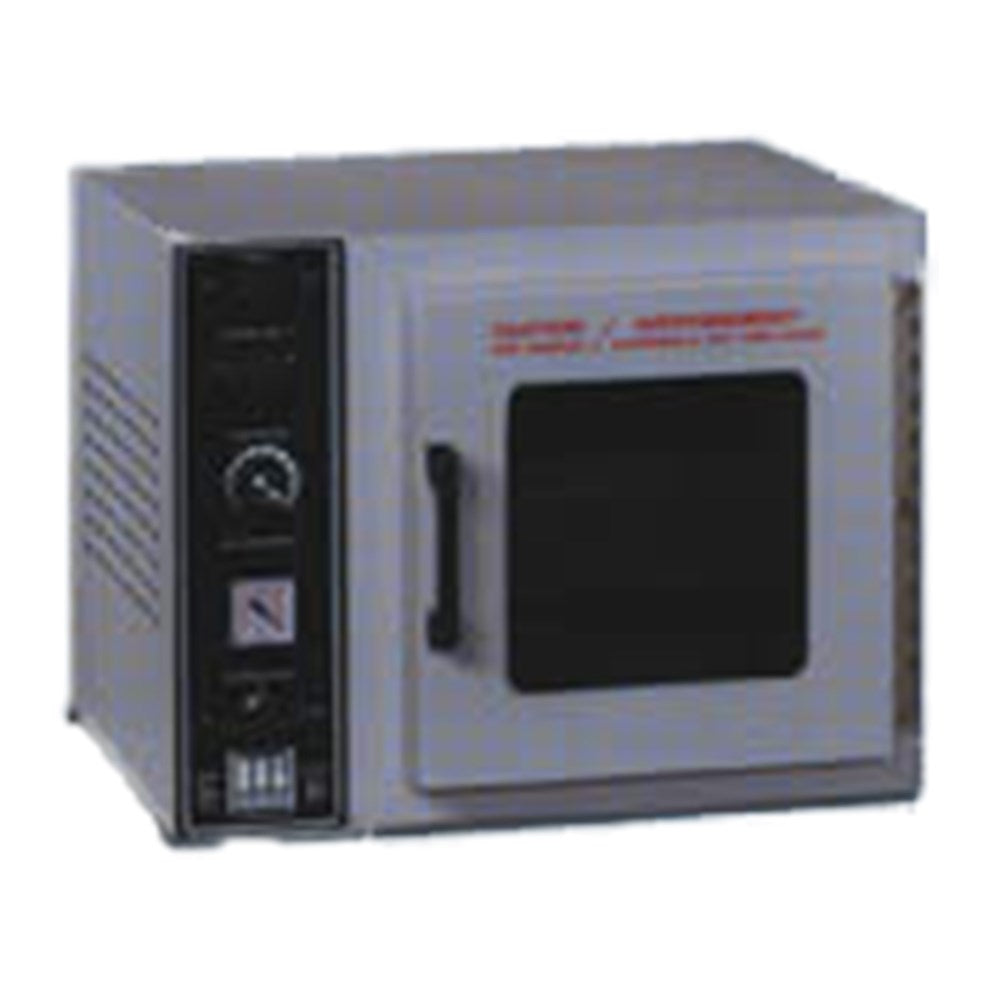

Electrical Multipurpose vacuum oven with two control configurations and display options, Dial or LED. Available in 12.5L up to 65L. Includes two removable aluminum shelves.
Operation
- Operating temperature range from ambient +5°C to 220°C (428°F)
- Vacuum level displayed on gauge from 0 to 30″ Hg (76.2cm)
- Model 3606, 3608 and 3618 vacuum ovens feature a hydraulic thermostat to control temperature to ±1.5°C with a uniformity of ±5°C @ 100°C, 25″ Hg and built-in oven-temperature protection
- Model 3618P vacuum ovens feature programmable microprocessor- based P.I.D. temperature control that regulates to within±0.2°C with a uniformity of±2.4°C @ 100°C, 25″ Hg
- The programmable microprocessor- based temperature control on model 3618P vacuum ovens run at a single set point or utilize a 24-step program of ramps and dwells. These vacuum ovens feature independent vacuum and purge needle values
Product Description
- Radiant warm wall heating sustrem provides optional uniformity
- Conserves chamber space for drying, curing, vacuum embedding, and plating applications
- Silicone door gasket and a positive latch door maintains the seal for all vacuum levels
- Exclusive polycarbonate safety shield protects door glass
- Vacuum fittings require 0.25″ (0.6 cm) I.D. tubing
- Easy-to-clean #304 stainless steel chamber interior
- Powder coated heavy gauge steel exterior construction
Product Specifications Code Model # Chamber inch (cm) Overall inch (cm) Electrical Chamber Vol cu. ft (l) Net Wgt lbs (kg) Ship Wgt. lbs (kg) W H D W H D Volts Amps Watts EMS63239-10 3618P
14 (36) 14 (36) 20 (51) 25 (64) 22 (56) 25 (64) 120 13.3 1600 2.3 (65.1)
300 (136) EMS63239-20
3618P-1 240 6.7
Operation specifications:
Model# Operating
Temp Range °C Rise Time (Ambient to 100°C) Control@100°C 25″ Hg Uniformity @100°C, 25″ Hg Vacuum Range 3618-P Ambient +5C to 200°C 2.4 hours ±0.2°C ±2.4°C 0-30″ Hg
