Description

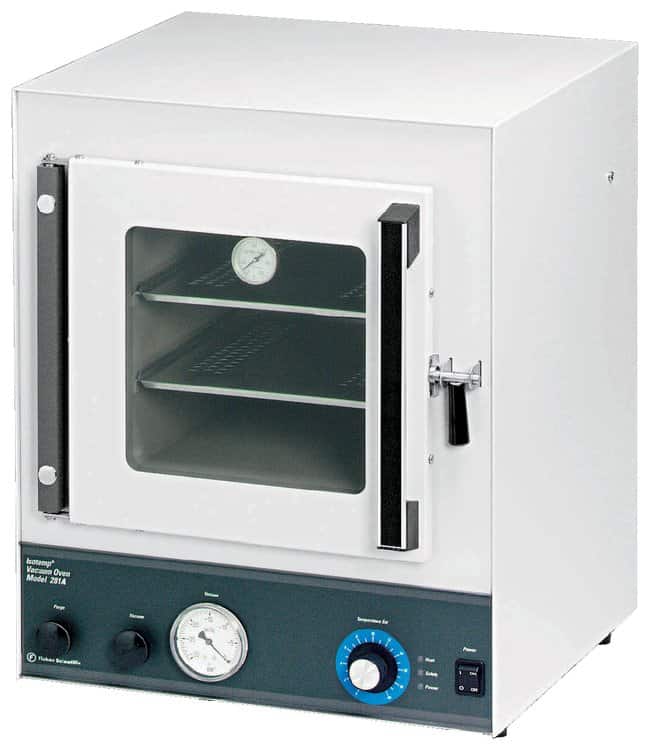

Standard capacity vacuum oven
10 in. wide (25cm), 1000-watt wraparound element completely covers top, sides and bottom of oven chamber
Operating Features
- Capacity: 0.65 cu. ft. (0.02m3)
- Dial-in temperatures up to 280°C (536°F)
- Maintains 30 in.Hg (762mm) vacuum with less than 1/2 in.Hg (12.7mm) loss per day
- Automatic temperature backup control takes over if the temperature rises more than 5°C over setpoint, constancy ±1.0°C at ultimate vacuum, control sensitivity ± 1.0°C, warning light alerts of failure
Cabinet Features
- Full-view window permits continuous monitoring
- 18-gauge steel cabinet is protected by chemical-resistant enamel with 4 in. thick (10cm) fiberglass insulation
- Low-temperature handle and silicone door gasket
- Separate inlet and outlet connectors/controls allow replacement of air with inert gas
Order Info
Capacity: 0.67 cu. ft. (0.018m2)
Shelf and floor area: 313 sq. in. (2019cm2)
Chamber: 11.5D × 10W × 10 in.H (29 × 25 × 25cm)
Exterior: 17 3/4L × 18W × 22 3/4 in.H (45 × 46 × 58cm)
Shipping weight, 90 lb. (41kg)
Service Plan
Service agreement available.
Warranty and Services
One year parts, labor and travel
Технические характеристики
| Chamber Material | Stainless Steel |
| Type | Vacuum Oven |
| Material | Baked Epoxy Enamel Coated 18G Steel |
| Temperature Control | ±1°C |
| Temperature Uniformity | ±1°C to 100°C |
| Dimensions (D x W x H) Interior | 11.5 x 10 x 10 in. (29 x 25 x 25 cm) |
| Length (Metric) | 45 cm |
| Width (English) Interior | 10 in. |
| Height (English) Interior | 10 in. |
| Height (Metric) Interior | 25 cm |
| Depth (Metric) Interior | 29 cm |
| Amperage | 14.7 A |
