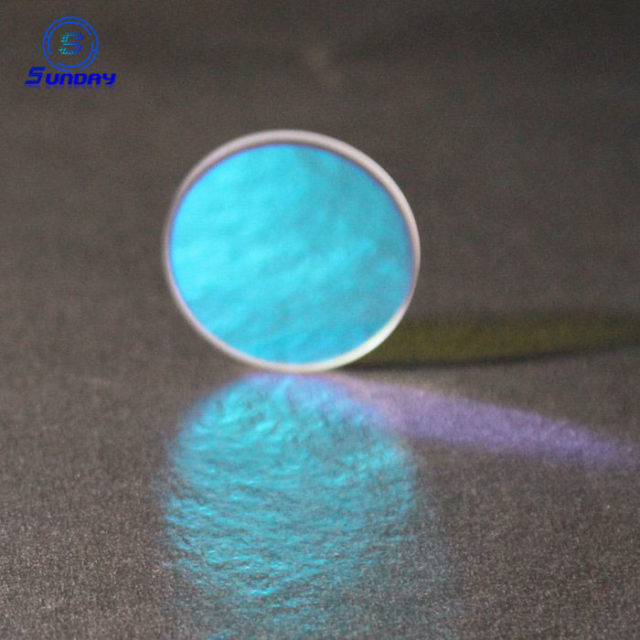

Узкополосный фильтр

Узкополосный фильтр пропускает небольшой свет, чем уже, тем чище свет. Воскресенье производит стандартные узкополосные фильтры.

Доставка импортных компонентов по России от 3х недель транспортными компаниями СДЭК, Деловые Линии, Major Express.

Оплата физическими и юридическими лицами безналичным расчетом.

Цена может измениться после запроса у поставщика!

Технические характеристики

The film of narrowband filter is generally composed of two kinds of films with low refractive index and high refractive index. After superposition, the number of layers can reach dozens of layers. The parameters of each layer of film may affect the final performance.

The transmittance of narrowband filter is very sensitive to the loss of thin film, so the production process is relatively high.The narrowband filters are mainly used in the applications of medical biochemical instrument, ELIASA, pesticide residue detection, water quality analysis system and variety of detecting instruments.

Features

High wavelength positioning accuracy

Hard and firm coating film

Good heat resistance and moisture resistance

Long service life(over 5 years under general condition)

Modules or Types

CWL(nm)	FWHM(nm)	Tmax(%)	Blocking Wavelength Range	Blocking	Size
295	12+/-2nm	Tв‰Ґ20%	200-2000nm	OD5(0.001%)	П†10 П†12 П†15 up to 50mm
420	8+/-2nm	Tв‰Ґ45%	200-1100nm	OD5(0.001%)	П†10 П†12 П†15 up to 50mm
465	8+/-2nm	Tв‰Ґ45%	200-1100nm	OD5(0.001%)	П†10 П†12 П†15 up to 50mm
510	8+/-2nm	Tв‰Ґ45%	200-1100nm	OD5(0.001%)	П†10 П†12 П†15 up to 80mm
525	8+/-2nm	Tв‰Ґ45%	200-1100nm	OD5(0.001%)	П†10 П†12 П†15 up to 80mm
562	8+/-2nm	Tв‰Ґ45%	200-1100nm	OD5(0.001%)	П†10 П†12 П†15 up to 80mm
589	8+/-2nm	Tв‰Ґ45%	200-1100nm	OD5(0.001%)	П†10 П†12 П†15 up to 80mm
605	8+/-2nm	Tв‰Ґ45%	200-1100nm	OD5(0.001%)	П†10 П†12 П†15 up to 80mm
620	8+/-2nm	Tв‰Ґ45%	200-1100nm	OD6	П†10 П†12 П†15
625	8+/-2nm	Tв‰Ґ45%	200-1100nm	OD5(0.001%)	П†10 П†12 П†15 up to 80mm
665	8+/-2nm	Tв‰Ґ45%	200-2000nm	OD6
730	10+/-2nm	Tв‰Ґ80%	200-1100nm	OD5(0.001%)	П†10 П†12 П†15 up to 50mm
870	30+/-2nm	Tв‰Ґ85%	200-1200nm	OD5	П†10 П†12
900	25+/-2nm	Tв‰Ґ85%	200-1200nm	OD5	П†30
915	30+/-2nm	Tв‰Ґ85%	200-1200nm	OD5	П†10 П†12
920	20+/-2nm	Tв‰Ґ20%	200-1200nm	T&lt,10-4	П†30

Manufacture Specifications

Diameter	2mm to 200mm
Diameter Tolerance	+0.00/-0.1 or customer size
Material	N-BK7,H-K9L,Sapphire,Fused Silica(JGS1),Caf2,ZnSe,Si,Ge,etc.
Surface Quality	80-50 to 10/5
Flatness	1/4 lambda
Thickness Tolerance	+0.00/-0.05mm
Standard wavelength	270nm,311гЂЃ360гЂЃ380гЂЃ473гЂЃ532гЂЃ650гЂЃ780гЂЃ808гЂЃ850гЂЃ904гЂЃ940гЂЃ1064 and 1900nm.
FWHM	5nm to 50nm
Transmission	60% to 99%
Average blocking	OD6

Sample Curves-540nm

Notes: for more curves, please contact us.
