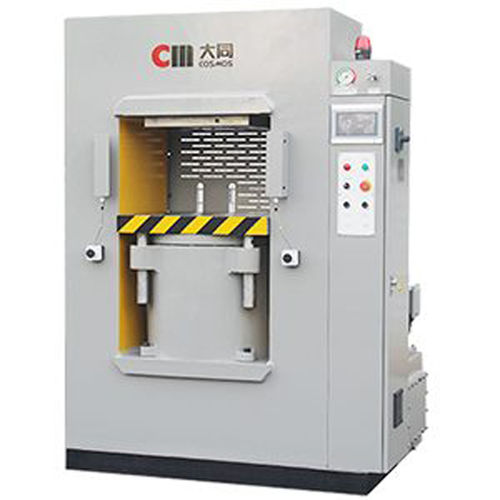

Frame structure: whole welded frame structure through annealing process, enhances high strength and rigidity, Ram cylinder structure: built-in auxiliary cylinder, fast dry run speed, enhances high productivity, Oil tank: located at bottom side of machine, ease to change the hydraulic oil and clean the tank, Control system: PLC + HMI (Siemens brand), refer to pressing technology requirement set the parameters on HMI such as pressure, position, hold pressure, multi-pressing, etc, Position setting: used of linear scale to feedback the position of moving bolster, ease to adjust the pressing stroke length, Pressure setting: ease to adjust the pressure as pressing process technology requirement, Pressure built-up speed: fast pressure built-up speed after mold closed, achieve to target pressure just few seconds, Selectivity: different of ejection type can be selected such as lower ejector, upper ejector and lower & upper ejector, suitable for different type of pressing technology requirement, (Servo motor driving system as option) Application field Stamping, forming, shallow drawing, die spotting, molding and blanking of metallic and non-metallic material, Forming of watch case, watch band, spectacle parts, photo frame, tableware, metal ornaments, lock parts, auto part and hardware etc.,
Технические характеристики
CharacteristicsOperationhydraulicFunctionstamping, drawing, blanking, die-spottingStructureupstroke, frameControlPLC-controlled, numerical controlOther characteristicsprocess, servo-drivenForce
Min.: 200 tf
Max.: 2,000 tf
Opening
380 mm, 450 mm, 500 mm, 550 mm, 800 mm (15 in)
Stroke
150 mm (6 in)
Max. pressure
220 bar, 240 bar, 250 bar, 270 bar (3,191 psi)
Return speed
80 mm/s, 90 mm/s, 105 mm/s
Approaching speed
70 mm/s, 80 mm/s, 90 mm/s
Hydraulic pump power
5.5 kW, 15 kW, 18.5 kW, 22 kW, 30 kW
Weight
Min.: 2,400 kg (5,291 lb)
Max.: 40,000 kg (88,185 lb)
Overall length
Min.: 1,200 mm (47 in)
Max.: 2,500 mm (98 in)
Overall width
Min.: 1,080 mm (43 in)
Max.: 2,545 mm (100 in)
Overall height
Min.: 1,840 mm (72 in)
Max.: 3,745 mm (147 in)
