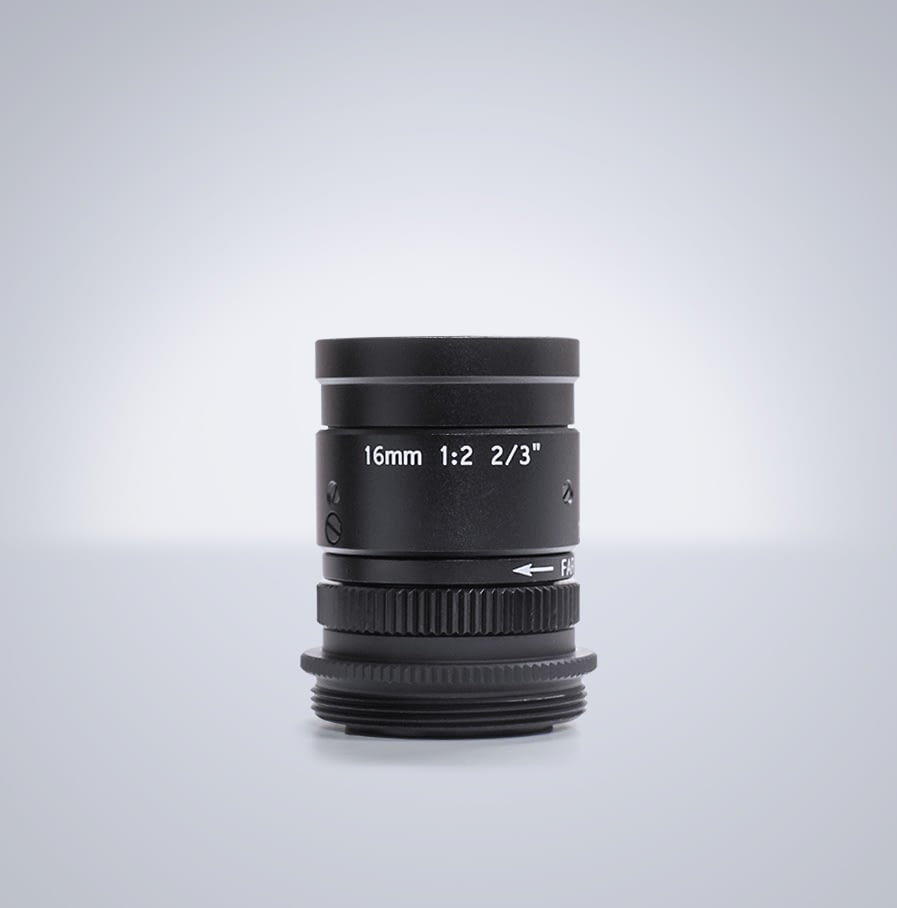

| Manufacturer Model # | Universe BL160C |
|---|---|
| LUCID SKU | UC160-5M |
| Focal Length | 16mm |
| Iris Range (f no.) | f2.0 f16 |
| Angle of View (H x V) * * Mounted to 2/3” sensor cameras | 31° x 23.4° |
| Focus Range (from front of the lens) | ∞ 400mm |
| Operation of Focus | Manual |
| Operation of Iris | Manual |
| Mount | C-Mount |
|---|---|
| Filter Thread | M22.5 x 0.5mm |
| Sensor Size (max.) | 2/3” |
| TV Distortion | -1.3% |
| Diameter x Length | φ24 x 34.53mm |
| Weight | |
| Locking Mechanism | Lock ring |
