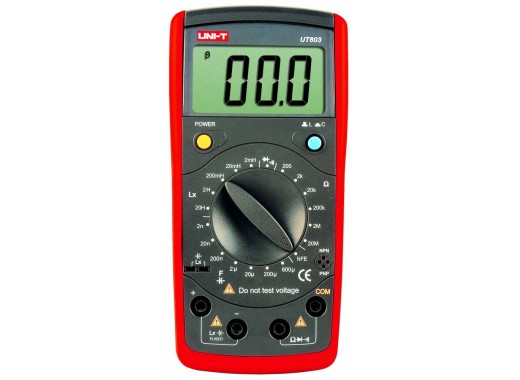

This LCR meter from UNI-T is a very smart choice for the hobbyist who occasionally wants to measure a capacity or coil. The meter is suitable for all types of impedance measurements and is easy to use.
Specifications Display 2,000 counts Range and accuracy Specification Range Accuracy Resistance 0 — 200 to 20 M ±,0.8%+1 Capacitance 0 — 2 nF to 600 F ±,(1%+5) Induction 0 — 2mH to 20 H ±, (2%+8) Other tests Transistor, Continuity buzzer, Diode Batteries 9V (6F22) Weight 312g Dimensions 172 x 83 x 38 mm
Please refer to the user manual below for more information.
Accessories
The meters come with:
- Test clip
- Battery
