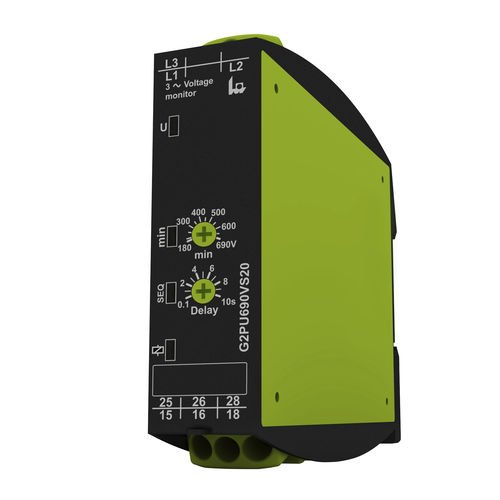

GAMMA Series Phase Loss Monitor for up to 690V nominal voltage This product monitors phase loss, phase sequence, and phase rotation. The under-voltage settings can be adjusted locally from 180V to 690V. This product is ideal to monitor phase and power condition before damage can even happen to your equipment. The adjustable tripping delay can be utilized to deal with differences in power quality for up to 10s. Our G2PU690VS20 is also the perfect tool to make sure your electrician wires the control panel and compressors, pumps, or other drives in the right phase sequences. The integrated LED indicators give a constant feedback of the power and phase condition while two integrated relay outputs (DPDT configuration) trigger alarms to your PLC or trigger actions. Our TELE technology allows to power our monitoring relay directly from the mains that are monitored.
Технические характеристики
CharacteristicsMeasured/monitored valueunder-voltage, phase sequence, phase loss, phase unbalance, phase sequence, phase comparisonContact configuration2 NO, 2 NC, DPDTNetworkAC, three-phaseApplicationsfor electric motors, for generators, for feederMountingDIN railResetautomatic resetNormsIECOther characteristicsmultifunction, adjustable, programmable, configurable, electronicTrigger voltage
Max.: 792 V
690 V
Min.: 180 V
