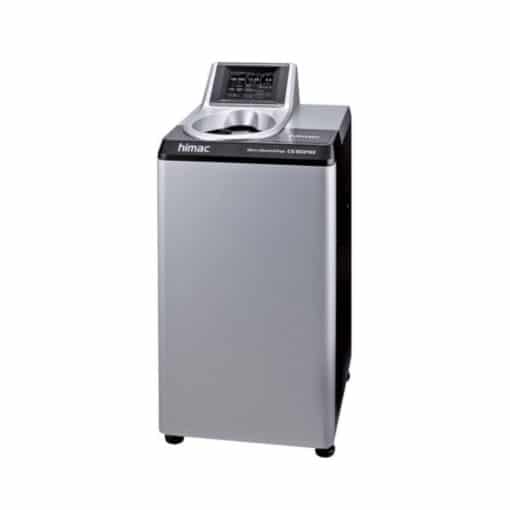

Product Description Max. speed (rpm) 150,000 Max.RCF (xg) 1,050,000 (S140AT rotor) Speed control accuracy ±,50 (5,000 to max. speed) Max. capacity (nominal) 30ml x 6 tubes (S50A rotor) Max. capacity (nominal) (Swinging bucket rotor) 7ml x 4 tubes (S50ST rotor) Timer 1 min. to 99 hrs. and 59 min. with HOLD and RTC (real-time control) function Vacuum system Oil rotary vacuum pump and oil diffusion pump The worlds fastest speed: 150,000rpm/The worlds greatest RCF: 1,050,000xg himac state-of-art technologies have realized the above greatest performance and the quietest operating sound 45 dBA in its the unique floor-standing model. CS150FNX, as well as CS150NX, takes only 90 seconds to reach the worlds fastest speed 150,000rpm by himac original vacuumed drive unit. Now you can separate and purify protein, lipoprotein, cell organelle, DNA and RNA, also carbon nanotubes and other nano-sized particles, more efficiently than ever. The Unique Floor-Standing Micro Ultracentrifuge This unique floor-standing model (440(W) x 520(D) x 910(H) ) is suitable to be installed at central and/ or shared laboratory devices, so that may laboratories can share CS-FNX series. Powerful Imbalance Protection Samples need to be balanced within 5mm by visual check only.* Non-contact imbalance sensor always monitors vibration of the rotor and drive shaft. In case of abnormal vibration, the sensor activates and stops operation immediately. Except for S140AT, S50A, S110AT and S80AT3 Quick Start-Up It takes just 8 seconds (minimum) to be ready for operation since power switch is turned on. Initial screen is displayed on the LCD panel during booting up the system. Powerful Vacuum Pump Reaching time to high-vacuum status is reduced to half by optimized control of the oil diffusion pump. (comparing with our previous model) Quiet Operating Sound 45dBA This unusually quiet operating sound was realized by newly develop rigid-control drive system and sound absorbing structure design. It does not disturb your researching works in the laboratory. Easy Operation with Touch-Sensitive LCD Color touch-sensitive LCD and GUI (graphic user interface) with high contrast against back screen in black color enable users to easily operate the system or select various menus and functions by touching the icon on the display. Of course, operation status is identified at a glance by intelligible screen design. Easy Timer Setting and Actual Run Timer himac original RTC(real-time control) function makes timer setting easy. What you need to do is simply set start time or finish time with running time. It is easier than conventional delay time setting timer. himac original Actual Run Timer starts when the set speed is attained and excludes acceleration time from the set time. It helps to precisely control the net run-time and obtain high-reproducibility separation. Of course, conventional run timer is selectable. Data Communication USB port is equipped as standard specification. (CS150FNX and CS150NX only) The system records up to 100 operating histories in its memory. So operating data can be output in CSV format through the USB port. Optional LAN board is also available. (CS150FNX and CS150NX only) You can link CS150FNX and/or CS150NX to your PC through Ethernet or internet. Optional software himac LogManager Ver. 5.0 (network edition) can be installed in your PC and operating history and data of CS150FNX and/or CS150NX can be easily managed by your PC. Tube Sealer model STF3 The STF3 is heat-welding tube sealer to use the seal tubes with fixed angle rotors, vertical rotors and neo angle rotors. New Line-up Seal Tubes with xg Boost System In addition to the current himac ultracentrifuge seal tubes, new seal tubes were line-up. This time they can use at the rotors maximum RCF because the tube position locates at the maximum radius of the rotor cavities. Expanding the range of seal tubes widens the rotors availability, too. Small volume tubes can use at the rotors maximum RCF Compared with the same volume tubes, new seal tubes K factors are smaller and take less centrifugation time Sealing performance prevents from sample leakage To use these new lineup seal tubes, float spacer, space cap, tube rack and STF3 tube sealer are required. Technical Specifications Model CS150FNX Max. speed (rpm) 150,000 Max.RCF (xg) 1,050,000 (S140AT rotor) Speed control accuracy ±,50 (5,000 to max. speed) Max. capacity (nominal) 30ml x 6 tubes (S50A rotor) Max. capacity (nominal) (Swinging bucket rotor) 7ml x 4 tubes (S50ST rotor) Timer 1 min. to 99 hrs. and 59 min. with HOLD and RTC (real-time control) function Vacuum system Oil rotary vacuum pump and oil diffusion pump Rotor temperature control range(C) 0 to + 40 (1 degree increment) Rotor Cooling method Thermo-module cooling system (HFC-free) Screen display Colour LCD (touch-sensitive) Rotor setting method Self locking rotor system (no special tool required) Operation noise (dB(A))* 45 *Measured 1 meter from front Max. heat dissipation into room (kW) 0.7 or less Drive unit warranty 5 years *1 Dimensions (mm) 440 (W) x 520 (D) x 910 (H), height to table 790 Floor area (m) 0.54 (740 x 720 ㎜,) *2 Weight (kg) 10
Технические характеристики
Technical Specifications
| Model | CS150FNX | |
|---|---|---|
| Max. speed (rpm) | 150,000 | |
| Max.RCF (xg) | 1,050,000 (S140AT rotor) | |
| Speed control accuracy | ±50 (5,000 to max. speed) | |
| Max. capacity (nominal) | 30ml x 6 tubes (S50A rotor) | |
| Max. capacity (nominal) (Swinging bucket rotor) | 7ml x 4 tubes (S50ST rotor) | |
| Timer | 1 min. to 99 hrs. and 59 min. with HOLD and RTC (real-time control) function | |
| Vacuum system | Oil rotary vacuum pump and oil diffusion pump | |
| Rotor temperature control range(ºC) | 0 to + 40 (1 degree increment) | |
| Rotor Cooling method | Thermo-module cooling system (HFC-free) | |
| Screen display | Colour LCD (touch-sensitive) | |
| Rotor setting method | Self — locking rotor system (no special tool required) | |
| Operation noise (dB(A))* | 45 *Measured 1 meter from front | |
| Max. heat dissipation into room (kW) | 0.7 or less | |
| Drive unit warranty | 5 years *1 | |
| Dimensions (mm) | 440 (W) x 520 (D) x 910 (H), height to table 790 | |
| Floor area (m²) | 0.54 (740 x 720 ㎜) *2 | |
| Weight (kg) | 105 |
