Additional Features:
- Combination of a 5.5 digit digital multimeter and 30-W power supply in a single unit
- 10 DMM measurements, including 4-wire miliohm measurement
- 8 built-in math functions
- OVP and OCP for load protection
- Ramp and scan function, and built in square-wave output
- USB 2.0 interface and GPIB connectivity
- Kensington lock slot for security

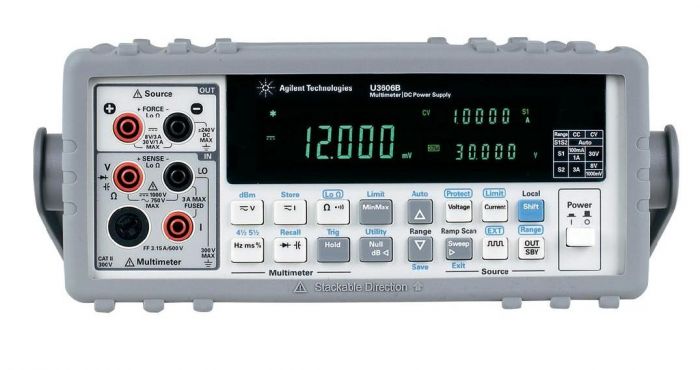

The Agilent U3606B multimeter/power supply combines a full featured 5.5 digit digital multimeter with a 30 Watt DC power supply in a single, compact unit. Hence it is capable of powering up your device under test (DUT) while you measure voltage or current etc. at the same time. This convenient 2-in-1 concept is space- and cost-efficient.
The Agilent U3606B is an improved version of Agilent U3606A with 2 newly added power range improvements such as better resolutions, broader ripple noise frequency specification, as well as better transient response and voltage programming time. You can easily connect the Agilent U3606B dual-purpose hybrid meter to your PC/laptop via USB or GPIB connectivity and control it remotely with Standard Commands for Programmable Instruments (SCPI).
The Agilent U3606B is ideal for tests such as sensor validation, electronic component tests and circuit board functional tests. Its key capabilities include sweep function (ramp and scan), low resistance measurement, and square wave output with selectable frequencies of up to 4.8 kHz.
Технические характеристики
| Manufacturer | Agilent, HP, Keysight |
|---|---|
| Condition | Used |
| AC Voltage | 750 V |
| DC Voltage | 1 kV |
| Resolution | 5.5 |
| Type | Bench |
