Data Sheet: Turbovap LV Data Sheet.pdf

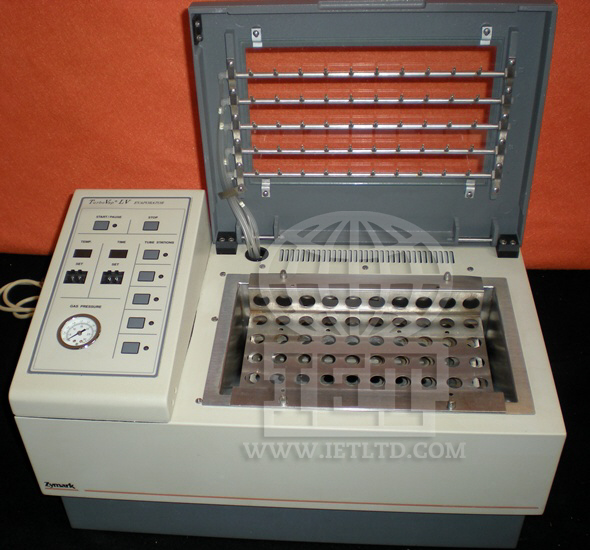

Refurbished Zymark TurboVap LV Evaporator. 100/120v, 60/50hz, 10 amps. OPTIONAL: 50 Position Sample Rack for 1.5ML-2ML conical screw cap tubes & 50 Position Sample Rack for 15ml centrifuge tubes. Other rack options available.
The system is fitted with a sample rack that holds 50 each 15mL centrifuge tubes. The chamber has 15 injectors. The chamber size is as follows: 11.5″ long, 6 ¾,» wide, and 7″ high. It is equipped with a ¼,» ID gas supply fitting for minimum 30 psi and maximum 80 psi dry regulated nitrogen or other suitable gas. It is equipped with a 2″ diameter venting hose, which the user must vent outside the laboratory in a suitable duct. The actual size is 21.2″ wide, 12″ high and 12″ deep. It will be supplied with 110v power cord and a manual. (available part numbers: 43750/15, 43750/20, 43750/25, p/n 43750/14, p/n 43750/24, p/n 103198/0, p/n 103198/1, p/n 43750/28, ZW700 & p/n 43750/30, ZW730, ZW-700.) Please contact us for complete Turbo Vap system, warranty and service contract details.
