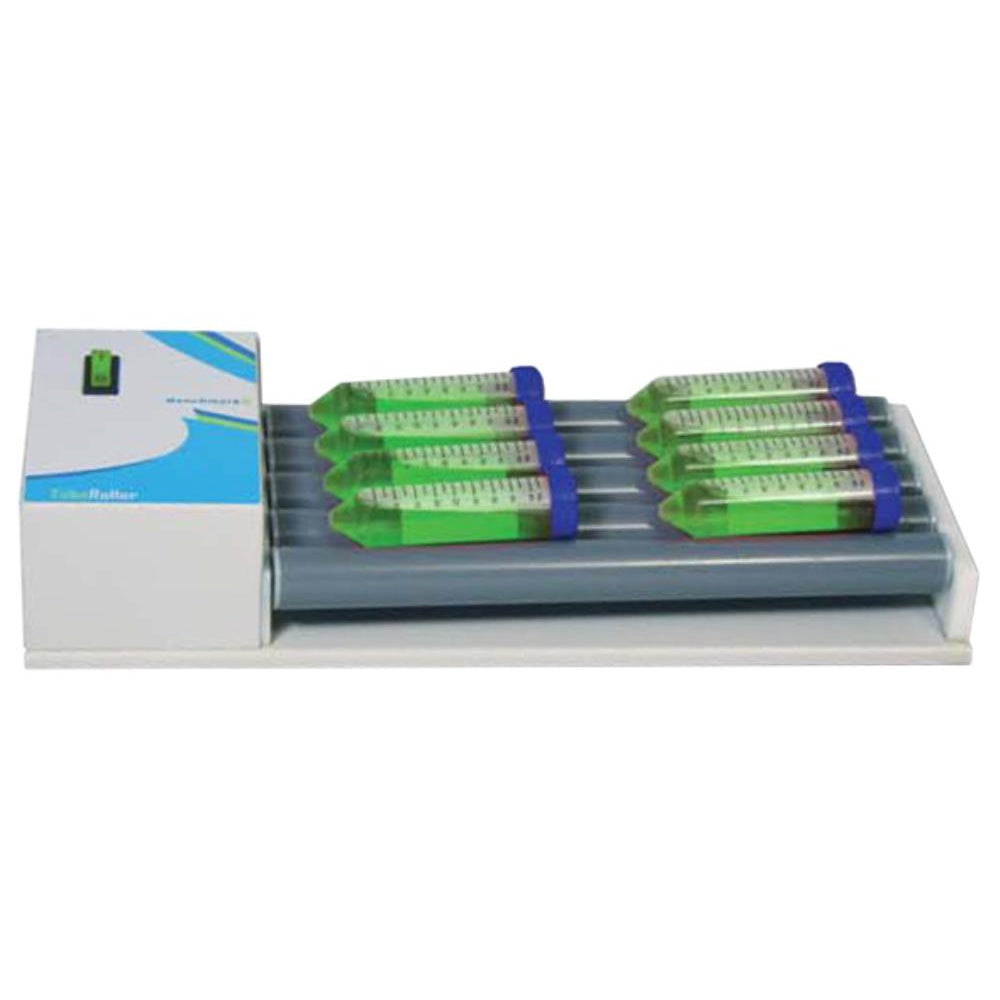

Benchmark TubeRollers are designed for the gentle, thorough mixing of a variety of containers, including Vacutainers, bottles, test tubes, centrifuge tubes and roller bottles. Both models (5 and 10 roller) operate at a constant 38rpm, chosen as the optimum speed for the broadest range of mixing requirements.
As the roller mechanism rotates through each complete revolution, the right side of each roller is gently elevated about 0.5in (13mm) and returns to the horizontal starting position. This additional, gentle up and down motion provides a «wave» effect and guarantees that the entire sample is subjected to complete, thorough mixing, end to end. This built in tilt feature provides a level of homogeneous mixing uniformity that can not be matched by any stationary roller apparatus.
From blood collection tubes to roller bottles, Benchmark TubeRollers are the ideal choice for research, clinical laboratories and doctor»s offices.
Features
- Constant 38rpm
- Gentle rolling motion
- Smooth ± 5 degree tilt action
- For tubes/bottles from 8mm to 200mm diameter
Typical Sample Load Capacity
Cat. No. EBR3005 EBR3010 12 x 75mm tubes 12 26 16 x 100mm tubes 8 18 15mL screw cap tubes 8 18 50mL screw cap tubes 8 18 850cm² roller bottles 1 2
Speed Fixed, 38 rpm (± 10%)
Tilt angle
± 5 deg.
Motion
Simultaneous roll and tilt
Operating temperature range
+4 to +40 deg. C
Dimensions (w x d x h)
EBR3005: 450 x 180 x 90mm
EBR3010: 450 x 360 x 90mm
Number of rollers EBR3005: 5
EBR3010: 10 Weight EBR3005: 5kg
EBR3010: 8kg Roller dimensions 30 x 320mm Vessels accepted 8mm to 200mm (diameter) Roller spacing 5mm (rollers are on 35mm centers) Electrical 230V, 50-60Hz Warranty 2 Years
