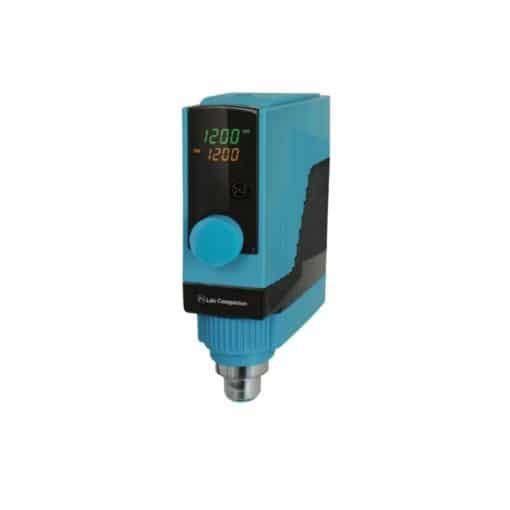

Product Description Compact and slim head design. Prevention of accidental spills or splashes thanks to microprocessor controlled smooth start and stop functions. Maintenance of constant motor speed by PID feedback control system even under conditions of changing viscosity. Powerful torque capable of handling high viscosity tasks. Bright digital display panel with touch sensitive buttons. Selectable display modes: rpm, power ratio (%), motor temp, and run time. Convenient emergency stop feature. Safety features against overload and overheating. sequential auto-stop safety features: visible warning audible warning auto-stop. High speed, vibration-free, and silent operation. Speed adjustment dial knob. Built-in USB port for external control and data collection. (Lab Companion software required) A wide range of accessories available. Technical Specifications Model MSP-1 MSP-2 MSP-3 Technical Data Speed Control PID feedback control Speed Range (rpm) 50 ~ 1,400 50 ~ 1,200 50 ~ 900 Display Digital Stirring Capacity, Max. (L, H2O) 20 30 50 Torque, Max. (N cm) 15 27 53 Power Max. (W / A) 15 / 1.2 20.4 / 1.7 31.2 / 2.6 General Data Body Material Aluminum + PP Dimension (mm / inch, W D H) 65 135 190 / 2.56 5.31 7.48 70 150 200 / 2.76 5.91 7.87 70 150 215 / 2.76 5.91 8.46 Net Weight (Kg / lbs) 2 / 4.41 2.5 / 5.51 3 / 6.61 Electrical Requirements AC 100 ~ 240V, 50 / 60Hz Safety Device Thermal protection, Current protection, Emergency stop, Automatic speed-down (MSP) Shaft Die, Max (mm / Inch) 3 ~ 10 / 0.12 ~ 0.39 Protection Class (DIN EN 60529) IP10 Cat. No. KR plug AAH371115K AAH371215K AAH371315K US plug AAH371115U AAH371215U AAH371315U
Технические характеристики
Technical Specifications
| Model | MSP-1 | MSP-2 | MSP-3 | |
|---|---|---|---|---|
| Technical Data | Speed Control | PID feedback control | ||
| Speed Range (rpm) | 50 ~ 1,400 | 50 ~ 1,200 | 50 ~ 900 | |
| Display | Digital | |||
| Stirring Capacity, Max. (L, H2O) | 20 | 30 | 50 | |
| Torque, Max. (N cm) | 15 | 27 | 53 | |
| Power Max. (W / A) | 15 / 1.2 | 20.4 / 1.7 | 31.2 / 2.6 | |
| General Data | Body Material | Aluminum + PP | ||
| Dimension (mm / inch, W D H) | 65 135 190 / 2.56 5.31 7.48 | 70 150 200 / 2.76 5.91 7.87 | 70 150 215 / 2.76 5.91 8.46 | |
| Net Weight (Kg / lbs) | 2 / 4.41 | 2.5 / 5.51 | 3 / 6.61 | |
| Electrical Requirements | AC 100 ~ 240V, 50 / 60Hz | |||
| Safety Device | Thermal protection, Current protection, Emergency stop, Automatic speed-down (MSP) | |||
| Shaft Die, Max (mm / Inch) | 3 ~ 10 / 0.12 ~ 0.39 | |||
| Protection Class (DIN EN 60529) | IP10 | |||
| Cat. No. | KR plug | AAH371115K | AAH371215K | AAH371315K |
| US plug | AAH371115U | AAH371215U | AAH371315U |
