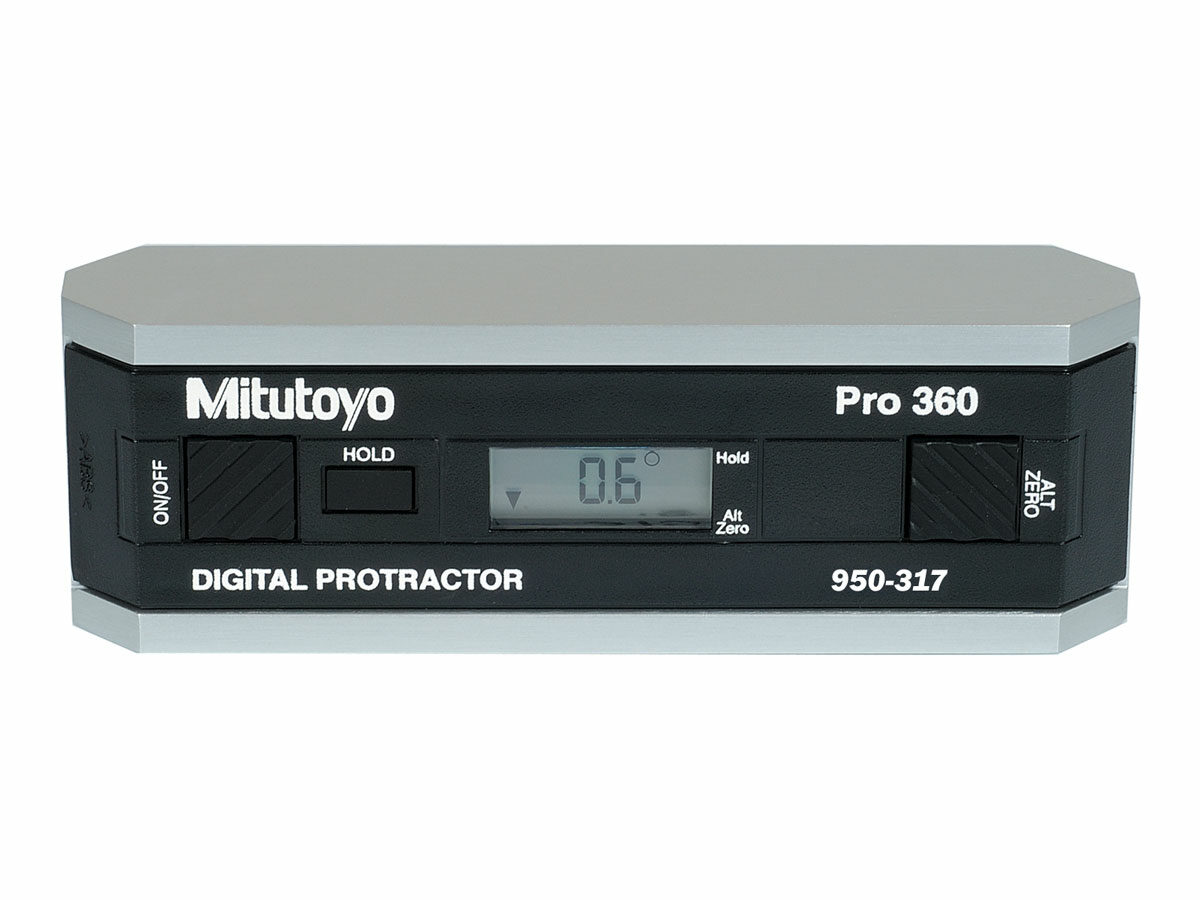

The Mitutoyo Digital Protractor Pro 360 and 3600 uses an electronic gravity sensor powered by the latest low-power electronic circuit technology to make incline measurements on flat surfaces. The Digital Protractor Pro has a full 360° measuring range, and the LCD display remains upright to view at all angles for easy, accurate readings on the Pro 360 model. The Pro 3600 utilizes RS-232 output for digital data management.
- Digital Protractor Pro 3600 has SPC output function for fast and easy data management in real time with optional data cable
- Calibration is simple and requires no special fixtures or tools
- Frame is constructed of machined aluminum for lightweight portability and durability
- Powered by 9V battery for 500 hour battery life
- Supplied in a fitted plastic case
| Order No.: | Product Image: | Model: | Resolution: | Accuracy: | Repeatability: | Weight: | Output: | |
|---|
| 950-317 | ![]() | Pro 360 | .01 ° | ±.1° Level ±10°, Plumb ±10° ±.2° Maximum error | ±.1° | 289g (10.2oz) | — |
| 950-318 | ![]() | Pro 3600 | .01 ° (0° to 9.99°) .1 ° (10° to 90°) | ±.05° (0° to 10°) ±.1° (80° to 90°) ±.2° (10° to 80°) | ±.05° | 295g (10.4oz) | RS-232C Compatible |
Технические характеристики
| Cross Axis Error: | Minimal |
|---|
| Temperature Operation: | -5°C to 50°C (23°F to 122°F) |
|---|
| Temperature Storage: | -20°C to 65°C (-4°F to 149°F) |
|---|
