| 16-channel logic analyzer probe for MSO8 Series |
Features:
- 3 year warranty
- Analog bandwidth: 1 GHz (single-channel and half-channel modes)
- 4 analog channels, 1 EXT channel, and 16 standard configuration of digital channels (required to purchase the probe)
- Up to 10 GSa/s real-time sample rate
- Up to 500 Mpts memory depth (standard)
- High waveform capture rate (over 600,000 waveforms per second)
- Up to 450,000 frames of hardware real-time and ceaseless waveforms recording and playback functions
- Integrates 7 independent instruments into 1, including digital oscilloscope, 16-channel logic analyzer, spectrum analyzer
- Auto measurement of 41 waveform parameters, full-memory hardware measurement function
- A variety of math operations, built-in enhanced FFT analysis, and peak search function
- Waveform histogram analysis (standard)
- Independent search, navigation keys, and event table
- User-defined one-key quick operation
- 10.1-inch capacitive multi-touch screen, 256-level intensity grading display, with color persistence
- Multiple interfaces available: USB HOST&DEVICE, LAN(LXI), HDMI, TRIG OUT, and USB-GPIB
- Web Control remote command
- Unique online version upgrade
- Sophisticated and convenient industrial design, easy to operate
Accessories:
- USB cable
- 4 passive high-impedance probes (500 MHz)
- 2 passive low-impedance probes (1.5 GHz, only for MSO8204/MSO8104)
- Front panel cover
- Quick guide (hard copy)
Specifications:
- 1 GHz
- 4 Channel
- 10 GS/s
- 1 MPts

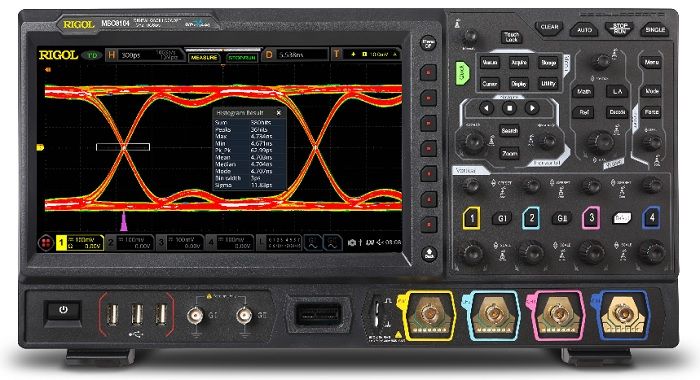

The MSO8104 is a medium and high-end mixed signal digital oscilloscope designed on the basis of the ASIC chip (RIGOL self-owns its intellectual property right) and UltraVision II technical platform developed by RIGOL. Integrating 7 independent instruments into one, the MSO8104 is equipped with the analog bandwidth of up to 1 GHz, extremely high memory depth of 1 Mpts, sound waveform display effects, excellent waveform capture rate, and powerful data analysis functions. Many of its specifications have reached the top level in the industry. Meanwhile, it supports the real-time eye diagram measurement and jitter analysis.
Технические характеристики
| Manufacturer | Rigol |
|---|---|
| Condition | New |
| Channels | 4 |
| Frequency | 1 GHz |
| Record Length | 1 MPts |
| Sampling Rate | 10 GS/s |
