Features:
- 4 Channel X-Stream Color SDA
- 13 GHz Bandwidth
- Single-Shot Sample Rate/Ch: 40 GS/s on 2 or 1 Channel, 20 GHz on 4 or 2 Channels
- 40 Mpts on 2 Channels, 20 Mpts on 4 Channels at 6 GHz
- Powerful Serial Data Analysis for Next Generation Standards
- Pristine signal integrity measurements
- Accurate jitter analysis
- Powerful advanced waveform analysis
- Stable, repeatable results

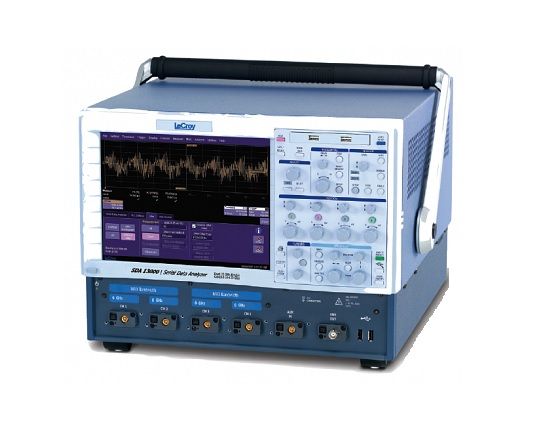

The LeCroy SDA 13000 integrates all the key measurement and analysis tools into one device:
- Serial data measurements up to 10 Gb/s
- WiMedia UWB Tx testing up through band group 5
- LeCroy 8b/10b serial decode option with powerful search capability enables captured waveforms to be searched for user-defined sequences of symbols. Multi-lane analysis decodes up to four simultaneously captured lanes
- Capture of up to 12 million Unit Intervals (UI) in a single acquisition allows measurements of important low-frequency effects, such as spread spectrum clocking and switching power supply noise
- LeCroy»s Digital Signal Processing (DSP) technology brings uniformity in frequency and phase response, resulting in dependable eye pattern representation. LeCroy uses DSP for equalization compensation, not BW extension
- Configurable software PLL for any standard or custom requirement
Supports testing of next generation serial data standards:
- 10 Gb/s Ethernet
- 8.5 Gb/s Fibre Channel
- 6 Gb/s SATA III / 3 Gb/s SATA II
- 6 Gb/s SAS
- 4.8 Gb/s FB-DIMM
- 6.25 Gb/s double XAUI
The 13 GHz SDA 13000 is ideal for analysis in systems with serial data rates up to 7 Gb/s. The SDA 13000 features an architecture supporting 2 channels at full BW. The SDA 13000 shares the same advanced serial data and jitter analysis capabilities of the SDA 18000, including Q-Scale analysis.
Технические характеристики
| Manufacturer | LeCroy |
|---|---|
| Condition | Used |
| Channels | 4 |
| Frequency | 13 GHz |
| Record Length | 40 MPts |
| Sampling Rate | 40 GS/s |
