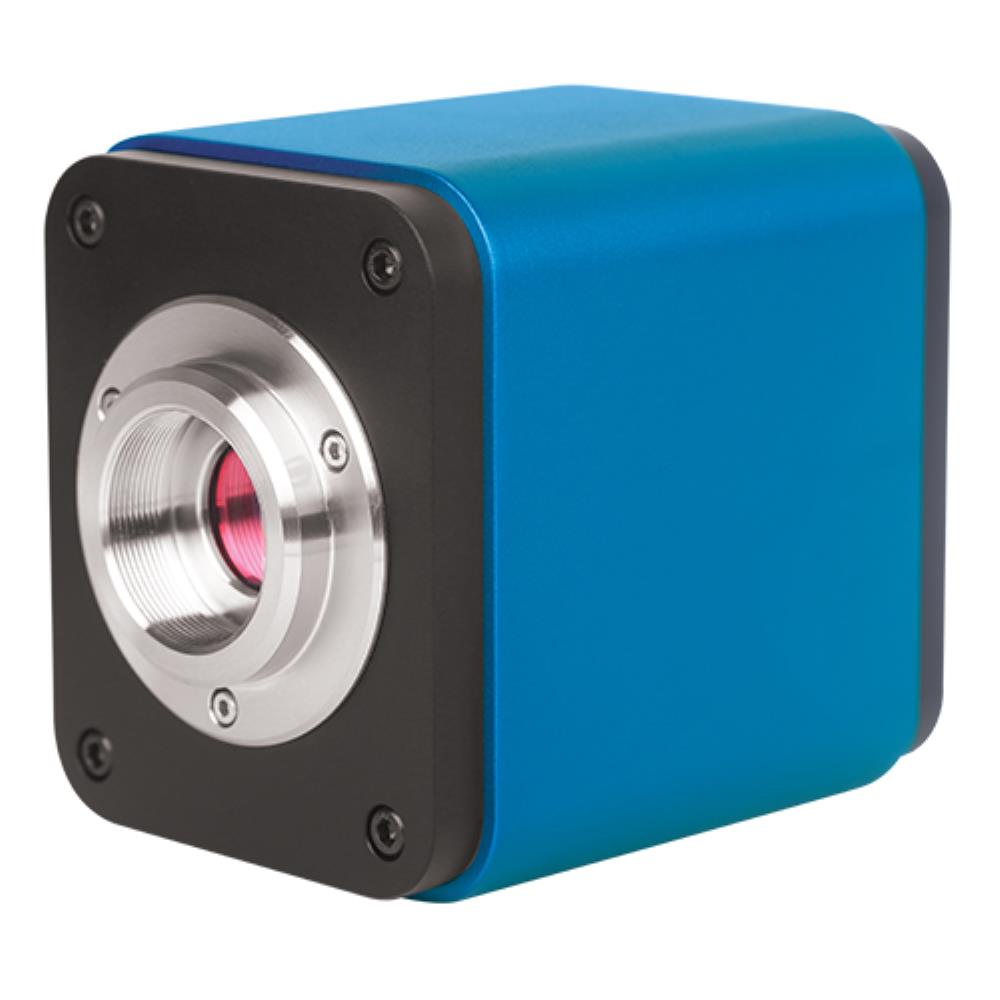

These CMOS cameras support multiple interfaces (HDMI, USB, SD card and optional WIFI) and adopts ultra-high performance Sony CMOS sensor as the image-picking device. HDMI+WIFI are used as the data transfer interface to HDMI display or computer.
- All in 1( HDMI+USB+SD card, with optional WIFI) C-mount camera with high sensitivity CMOS sensor
- Simultaneous HDMI, SD card and optional WIFI output
- Built-in camera control panel for mouse control
- Built-in toolbar including:
- zoom
- mirror
- comparison
- freeze
- Built-in image and video browsing
- Ultra-Fine color engine with perfect color reproduction capability
- Advanced video and image processing application ToupView
- Support standard SDK for Windows/Linux/Mac
For HDMI output, the XCamView will be loaded and a camera control panel and toolbar are overlaid on the HDMI screen. A USB mouse can be used to set the camera, play video or browse and compare the captured images.
For WIFI output, plug in the USB WIFI adapter, connect the computer WIFI to the camera. With ToupView software (free download), the camera can be controlled and video transferred to the computer.
Order Code Sensor and Size(mm) Pixel(μm) G Sensitivity
Dark Signal FPS/Resolution Binning Exposure
XCAM1080PHB
XP1080B
1080P/Sony IMX178(C)
1/1.8″(6.22×4.67)
2.4×2.4
425 mv with 1/30s
0.15 mv with 1/30s
60@1920×1080
(HDMI)
25@1920×1080
(WIFI)
1×1
0.03ms~918ms
XCAM1080PHD
XP1080D
1080P/Sony IMX185(C)
1/1.9″(7.2×4.5)
3.75×3.75
1120 mv with 1/30s
0.15 mv with 1/30s
60@1920×1080
(HDMI)
25@1920×1080
(WIFI)
1×1
0.06ms~918ms
Order Code Sensor and Size(mm) Pixel(μm) G Sensitivity
Dark Signal FPS/Resolution Binning Exposure
XCAM1080PHA
XP1080A
1080P/Sony IMX236(C)
1/2.8″(5.5×3.4)
2.8×2.8
510 mv with 1/30s
0.15 mv with 1/30s
60@1920×1080
30@1920×1080
1×1
0.4ms~999ms
Overall Dimensions Operating Environment Software Environment (for USB2.0 Connection) Other Specification for WIFI Output Other Specification for HDMI Output Interface and Button Functions
USB
USB Camera or USB Mouse
HDMI
HDMI Output
DC12V
12V Power in
SD
SD Card Slot
ON/OFF
Power On/Off Switch
LED Power On Indicator UI Operation With USB Mouse Image Capture
JPEG Format with 5M Resolution in SD Card(XCAM1080PHB)
JPEG Format with 2M Resolution in SD Card(XCAM1080PHD)
Video Record ASF Format 1080P 30fps in SD Card Camera Control Panel Including Exposure, Gain, White Balance, Color
Adjustment, Sharpness and De-noising Toolbar Including Zoom, Mirror, Comparison, Freeze,
Cross, Browser Function UI Operation With USB Mouse to Operate on the embedded XCam View WIFI Performance 802.11n 150Mbps, RF Power 20dBm(Maximum) Maximum Connected Devices 3-6(depending on proximity and other environmental factors) White Balance Auto White Balance
Color Technique
Ultra-Fine Color Engine (WIFI)
Capture/Control API
Standard SDK for Windows/Linux/Mac(WIFI)
Recording System
Still Picture or Movie (WIFI)
Operating System
Microsoft Windows XP /Vista /7/8/8.1/10 (32 and 64 bit)
OSx (Mac OS X)
Linux
PC Requirements
CPU: Equal to Intel Core2 2.8GHz or Higher
Memory: 4GB or More
USB Port: USB2.0 High-speed Port
Operating Temperature(C)
-10 — 50
Storage Temperature(C)
-20 — 60
Operating Humidity
30 — 80%RH
Storage Humidity
10 — 60%RH
Power Supply
DC 12V/2A Adaptor
Width x Depth x Height
78 mm x 70 mm x 92mm
Shipping Weight
470g
