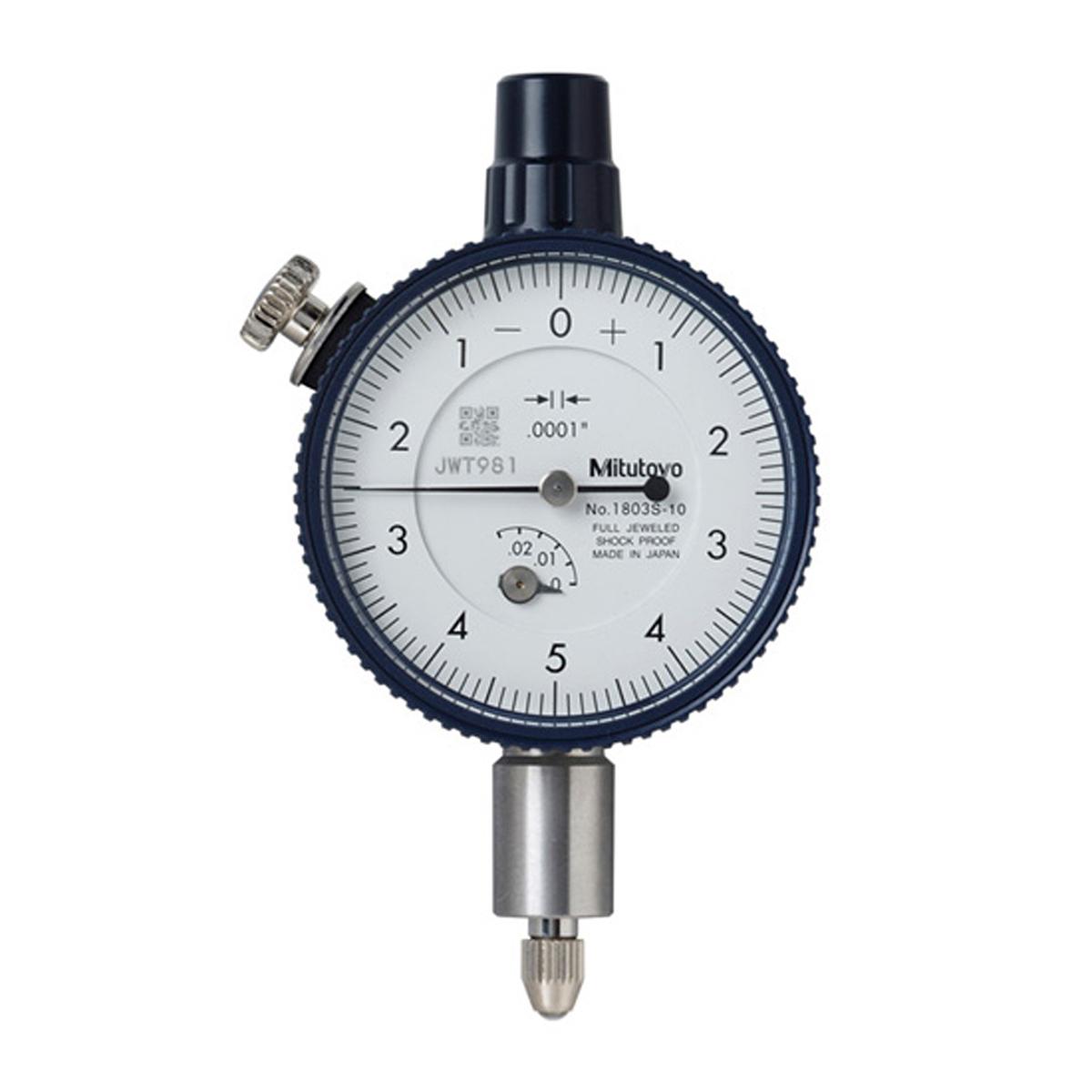

Циферблатный индикатор Mitutoyo 1803A-10, серия 1,025"/0,01", 0-5-0, циферблатный наконечник сзади

36 637 ₽

Доставка импортных компонентов Mitutoyo по России от 3х недель транспортными компаниями СДЭК, Деловые Линии, Major Express.

Оплата физическими и юридическими лицами безналичным расчетом.

Цена может измениться после запроса у поставщика!

Артикул: Description Mitutoyo 1803A-10 Series 1 Dial Indicator has a revolutionary stem-bush design for trouble free stem clamping and longer clamping range. No through screw-hole on the frame for high dust-resistance. Greater rigidity in the bearing plate for reducing the tracing error. This model has jeweled bearings, a Lug-Back and a range of .025" with .01" per revolution, .0001" graduation and 0-5-0 Dial Reading with an 3/8" Stem., The Mitutoyo “A” Series Dial Indicators have scratch resistant, anti-glare coated crystals just like our popular Test Indicators. They also have a standardized stop screw thread to M2.5x0.45, increased mounting stem length*, a redesigned spindle for waterproof models allowing for additional contact points to be used, a tapered hand/pointer base which makes repairs easier when needed, tolerance clips are now optional, a change in stop screw shape*, and the bezel and dust cap colors are black. * For some models. See charts and additional information in the dial indicator product sheet under Infor and Guides below. SpecificationsRange:.025"Graduation:.0001" Type:Jeweled bearingAccuracy:+/- .0001" Info and GuidesProduct Data Sheet TME арт.: Description Mitutoyo 1803A-10 Series 1 Dial Indicator has a revolutionary stem-bush design for trouble free stem clamping and longer clamping range. No through screw-hole on the frame for high dust-resistance. Greater rigidity in the bearing plate for reducing the tracing error. This model has jeweled bearings, a Lug-Back and a range of .025" with .01" per revolution, .0001" graduation and 0-5-0 Dial Reading with an 3/8" Stem., The Mitutoyo “A” Series Dial Indicators have scratch resistant, anti-glare coated crystals just like our popular Test Indicators. They also have a standardized stop screw thread to M2.5x0.45, increased mounting stem length*, a redesigned spindle for waterproof models allowing for additional contact points to be used, a tapered hand/pointer base which makes repairs easier when needed, tolerance clips are now optional, a change in stop screw shape*, and the bezel and dust cap colors are black. * For some models. See charts and additional information in the dial indicator product sheet under Infor and Guides below. SpecificationsRange:.025"Graduation:.0001" Type:Jeweled bearingAccuracy:+/- .0001" Info and GuidesProduct Data Sheet
