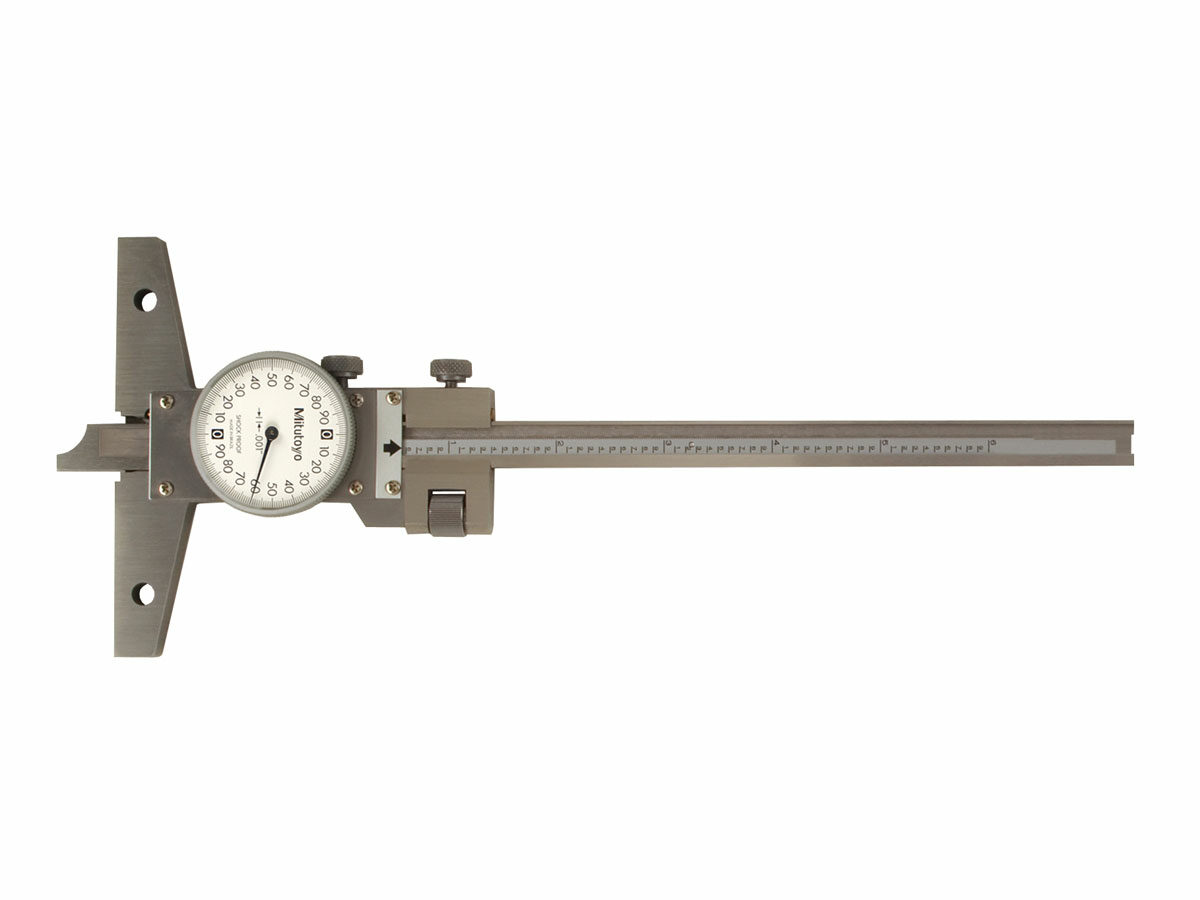

The Mitutoyo dial depth gage features a fine adjustment screw for the ultimate in precision depth measurement. The redesigned dial is quick and easy to read, and includes a locking screw to ensure measurements do not fluctuate when being recorded. This depth gage is constructed of hardened stainless steel, and its measuring faces and base are micro-lapped for improved accuracy and wear resistance. Wider extension bases (up to 450mm range models) are available if needed.
- Available in Inch models
- Available in ranges up to 6”, 8” and 12”
- Constructed of corrosion-resistant, hardened stainless steel
- Lock screw holds the slider in position for accurate measurement
- Supplied with a fitted plastic case
| Order No.: | Product Image: | Units: | Range: | Accuracy: | Mass: | |
|---|
| 527-311-50 | — | Inch | 0-6″ | ±.001″ | 280g |
| 527-312-50 | — | Inch | 0-8″ | ±.001″ | 300g |
| 527-313-50 |  | Inch | 0-12″ | ±.0015″ | 340g |
| 527-311-50 |
| 527-312-50 |
| 527-313-50 |
Технические характеристики
| Technology: | Mechanical |
|---|
| Units: | Inch |
|---|
| Graduation: | 0.001′ |
|---|
| Base size: | 100 x 6.5mm |
|---|
