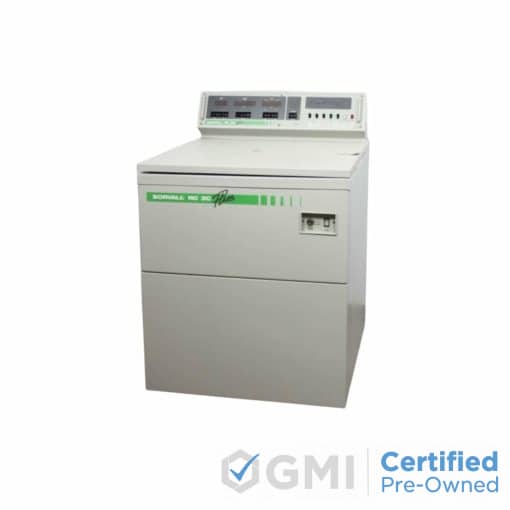

Product Description The Sorvall RC 3C Plus low speed, refrigerated centrifuge features large capacity, quiet, and low-heat operation with time-tested drive and refrigeration systems. Its automatic rate control system improves resolution and separation rates by providing smooth and efficient operations, while automated RCF determination enhances accuracy. Equipped with an advanced microprocessor, the RC 3C Plus offers reproducible results with its programmable operation. Ten distinct programs can be set and recalled through single-button control. The Sorvall model also incorporates the most imbalance-tolerant drive in the market. The 2.5 HP direct drive operates using the Sorvall GyroAction self-centering drive system which is imbalance-tolerant up to 50 grams. Guided by the principles of sustainability, the RC 3C Plus is integrated with a variety of advanced safety and environmental features. Like all Sorvall centrifuges, this model uses SUVA CFC-free refrigerants which provide efficient cooling while supporting environment preservation. The advanced digital displays of the Sorvall RC 3C Plus centrifuge include a speed/RCF display and speed selector, a time/w2dt display and selector, advisory messages, and diagnostic indicators. Ten different operational status conditions and 12 different coded system malfunction conditions are recognized by the system.
Технические характеристики
Technical Specifications
| Height (Top of Deck) | 94 cm (37 in) |
| Height (Top of Panel) | 121 cm (48 in) |
| Width | 76 cm (30 in) |
| Depth | 102 cm (40 in) |
| Rotor Chamber Diameter | 58 cm (23 in) |
| Weight (Uncrated) | 308 kg (678 lbs.) |
| Maximum Rotor Capacity | 6 x 1400 mL |
| Motor System | High-torque gyro-action direct drive, 2.5 HP , brushless |
| Maximum Speed | 6000 rpm |
| Maximum Force | 7200 g |
| Speed Control | 150 rpm to 6000 rpm |
| Speed Control Range | 10 rpm increments |
| Speed Control Accuracy | ±20 rpm or 1% |
| Automatic Rate Control | Accel control to 250 rpm Decel control from 500 rpm |
| Braking System | Electronic dynamic |
| Imbalance Detector | 50 gram tolerance |
| Temperature Control Range | 0˚ to + 30˚C at full speed |
| Temperature Control Accuracy | ±2 ˚C of set temperature |
| Operating Temperature Range | 20˚C to 40˚C |
| Overtemperature Protection | 7˚c above pre-set |
| Timer | 0 to 99 minutes, 59 seconds with HOLD |
| Programs | Up to 10 stored in internal memory |
| w2dt Integrator | Standard, accumulates value up to 9.9 x 1016 |
| RCF Determination | Standard for any rotor speed selected |
