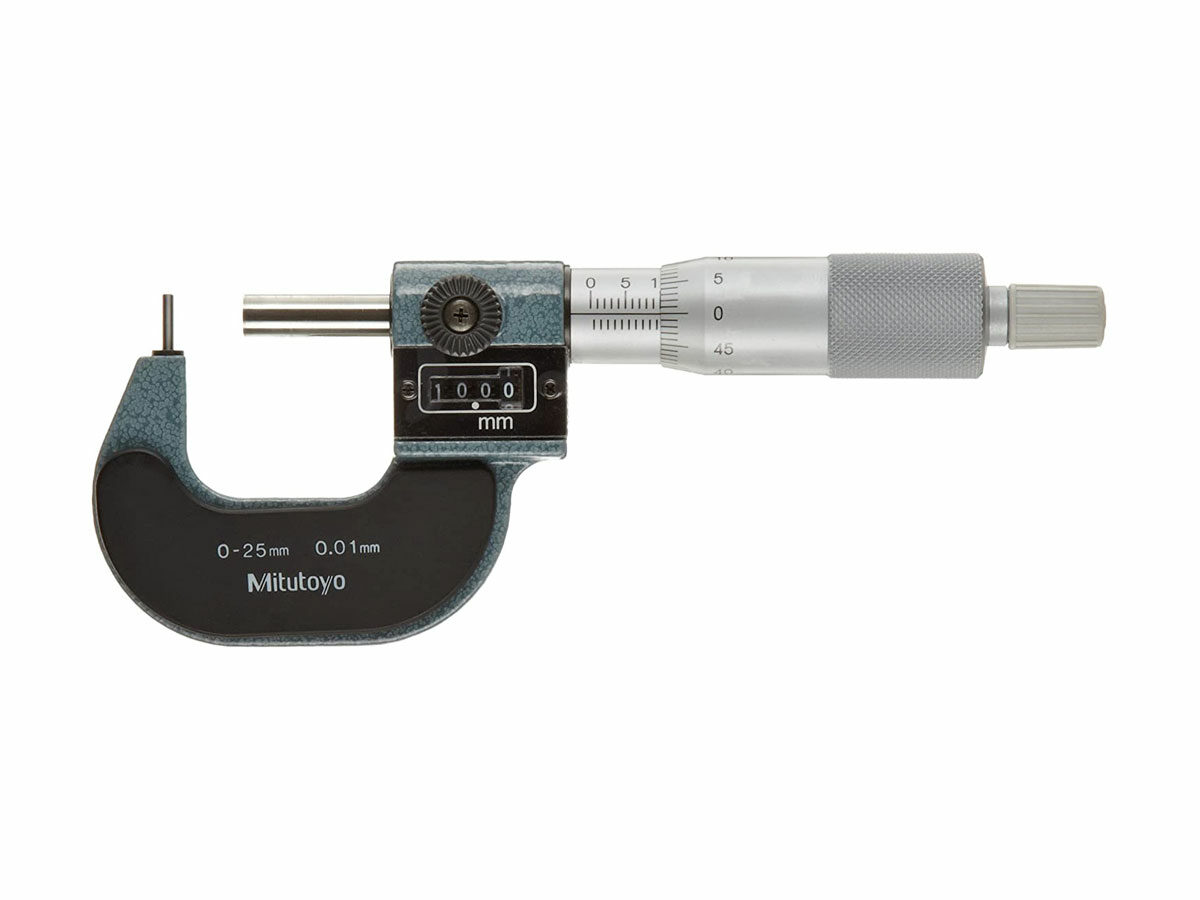

The Mitutoyo tube micrometer is available with either flat or spherical measuring face options to measure the wall thickness of various tubes. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements and eliminates over-speed error.
- Available with pin, spherical and cylindrical anvils
- Available in Metric and Inch models
- Measurements are displayed on the micrometer»s frame with a mechanical analog digit counter
- Model with a perpendicular cylindrical anvil are available
- Designed to measure the wall thickness of various tubing
- Measuring surfaces are constructed of carbide to reduce wear
- Ratchet mechanism provides an audible click to ensure measurement is being performed at a constant force
- Satin chrome finish on the sleeve and laser etched measurements on thimble for easier reading
- Frame has a non-slip finish for better grip in shop environments
- Includes a standard bar except for the 0-25mm and 0-1” model
- Supplied in fitted plastic case
| Order No.: | Product Image: | Units: | Range: | Accuracy: | Mass: | Graduation: | Remarks: | |
|---|
| 295-302 | — | Metric | 0-25mm | ±3µm | 210g | 0.01mm | Type A |
| 295-313 | — | Inch | 0-1″ | ±.00015″ | 210g | 0.0001″ | Type C |
| 295-314 | — | Inch | 0-1″ | ±.00015″ | 2310g | 0.0001″ | Type D |
Технические характеристики
| Technology: | Mechanical Counter |
|---|
| SPC Output: | No |
|---|
| Ratchet/Thimble: | Rachet Stop |
|---|
| Flatness: | 0.3µm |
|---|
