Description
Features:

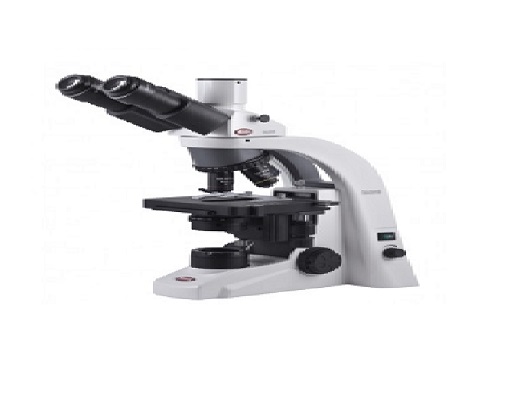

The Motic BA210 Trinocular is designed to be used as an educational microscope in the life science and medical fields and also supports various biological applications. It features a new generation of EF-N Plan Achromatic objectives to provide a fully corrected intermediate image for crisp and clear visual and digital results. It also features the improved CCIC infinity which makes it easy to perform dark field, and polarization microscopy.
Specifications:
- Trinocular Siedentopf 30° inclined head: for comfortable viewing while seated, rotates 360°
- Light split ratio: 100:0/20:80
- Interpupillary distance adjustment: between 55-75mm
- Widefield eyepieces: N-WF10X/20mm with diopter adjustment on both eyepieces
- Reversed quadruple nosepiece: with click stops for precise magnification changes
- CCIS EF-N Plan Achromatic objectives: 4X/0.10, 10X/0.25, 40X/0.65 – Spring, 100X/1.25 – Spring/Oil
- Coaxial coarse and fine focusing system: with 2 micron minimum increment with tension adjustment
- Vertical travel range: 25mm
- Large 140mm X 135mm mechanical stage: with low-position coaxial controls
- Travel range: 76 X 50mm
- Focusable Abbe condenser: N.A. 1.25 with iris diaphragm and slider slot
- Collector lens assembly: with screw-on filter holder
- Quartz Halogen illumination: 6V/30W with intensity control
