Description
Features:

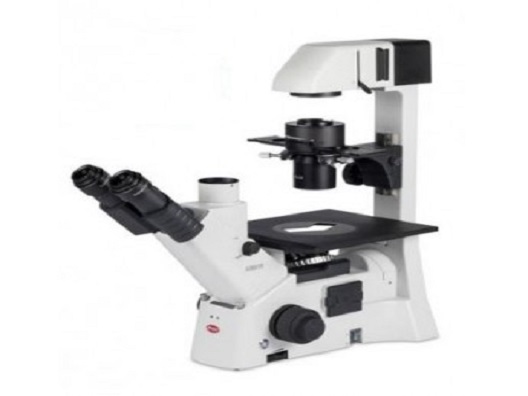

The Motic AE31 Elite Trinocular is an inverted microscope with an extended focus on practical aspects. It is built with the newest generation of LWD Plan Achromatic lenses. The tube lens configuration is in harmony with the complete BA series of Upright microscopes.
Specifications:
- Trinocular head Siedentopf type: 45° inclined
- Light split: 100:0/20:80
- Widefield high eyepoint eyepieces: WFPL 10X/22mm with diopter adjustment on both eyepieces and rubber eyecups
- Nosepiece: Side facing quintuple CCIS Plan achromatic objective PL 4X
- CCIS Plan achromatic Phase objective: PL Ph 10X, LWD PL Ph 20X
- Coaxial coarse and fine focusing adjustment
- Hard coated stage: with metal and glass stage inserts
- ELWD condenser: N.A. 0.30 (WD 72mm)
- Phase slider: Ph1 and brightfield
- Telescope: phase centering
- Koehler illumination: quartz halogen 6V/30W with external lamp house and intensity control
