Description

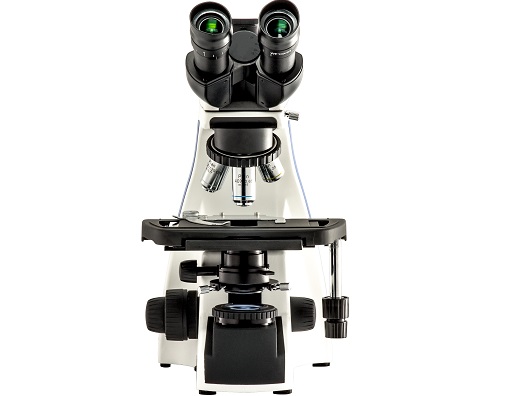

The Innovation microscope is equipped to ease the burden on the busiest and most discriminating lab technicians and specialists. Powerful performance, crisp clarity, and rugged construction, backed by a lifetime warranty on optical and mechanical components, make the Innovation a valued addition to any laboratory.
The Innovation microscope is equipped to ease the burden on the busiest and most discriminating lab technicians and specialists.
Powerful performance, crisp clarity, and rugged construction, backed by a lifetime warranty on optical and mechanical components, make the Innovation a valued addition to any laboratory.
HEAD
- Binocular (Seidentopf), Trinoc available
- Digital cameras available
- Diopter adjustment +/-5 (built into each eyepieces)
- Inclined 30°, rotates 360°
- 10X/22 Super WF HP eyepieces
- (15X/16 eyepieces available)
- 30mm eyetube
- Interpupillary distance range 50-75mm
NOSE PIECE
- Reverse quadruple / quintuple nosepiece
- Multiple ball bearing mounted
OBJECTIVES
- Infinity High Contrast Plan objectives
- Choose from 4- or 5-hole nosepiece
- 4X, 10X, 40XR, 100XR (oil) with the 4-hole nosepiece
- 4X, 10X, 20X, 40XR, 100XR (oil) with the 5-hole nosepiece
- 50X (oil) and 60X dry objectives are also available
- Anti-fungal, parfocal, parcentric, color-coded
STAGE
- Double Layer Mechanical Stage (216mm X 150mm)
- Graphite-Coated Surface
- Coaxial drive controls, rackless
- Range of traverse: 75mm x 55mm
- Slow-close hydraulic slide finger
FOCUS
- Coarse adjustment: range of 18mm
- Fine adjustment: graduation of 0.001mm
- Tension control knob
