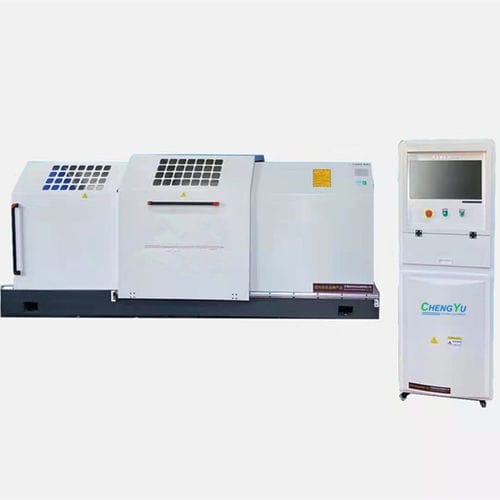

Model:CYLSN-1000E Microcomputer Controlled High Strength Bolt Testing Machine Specification: 1.Axial force detection range: 100-1000kN 2.Torque detection range: 100-5000Nm 3.Large hexagon bolt specifications: M10M12M16M20M24M27M30M36M39 4.Bolt length: 30mm—350mm (≥2.5d) 5.Test accuracy: axial force ±1.0% torque ±1.0% 6.Torsion angle measurement range 0-1000° (unlimited) 7.Output speed: 0.1-4r/min 8.Voltage: control system 220V AC, motor AC 380V Standard: EN14399-2:2005(E) GB/T 2611-2007 JB/T 9370-2015 JJG 139-2014 GB/T1231-2006 GB/T16823.1-2010 GB50205-2001 GB/T 32076.2-2015 EN 14399.2-2005 ASTM A325M-2009 AS/NZS1252:1996
Технические характеристики
CharacteristicsTest typetorsion, torqueOperating modefully-automatic, computer-controlledTest materialscrew, for metallic materials, for high-strength boltsSectorfor laboratories, for research and development, for quality controlTechnologyelectro-hydraulicConfigurationhorizontalOther characteristicsprecision, high-speed
