The Mitutoyo ABSOLUTE digital groove thickness gage can measure the thickness of grooves in a wide range of applications. The blade anvil is designed to reach into grooves to easily perform measurements that are otherwise extremely difficult to achieve with other indicators or instruments. These gages utilize the Mitutoyo ID-C and ID-S Digimatic indicators to provide error-free LCD readings. The grip handle, easy-to-reach lifting lever and spring-loaded spindle allows for quick and easy measurements without sacrificing accuracy.
- Metric/Inch models available
- Available with SPC output capabilities
- Spindles and anvils on most models are constructed with ceramic for better corrosion resistance
- Signal can be output to external device, waterproof data output connector protects against dust, water and oil ingress
- ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on
- Origin reset is not required even when data is re-displayed after disappearance due to insufficient illumination during use
- SPC output function allows for quick and easy data management in real time
- Unlimited response speed eliminates over-speed errors
- Measuring force is 1.5N or less
- Supplied in a fitted plastic case
| Order No.: | Product Image: | Range: | Indicator type: | Optional Accessories: | |
|---|

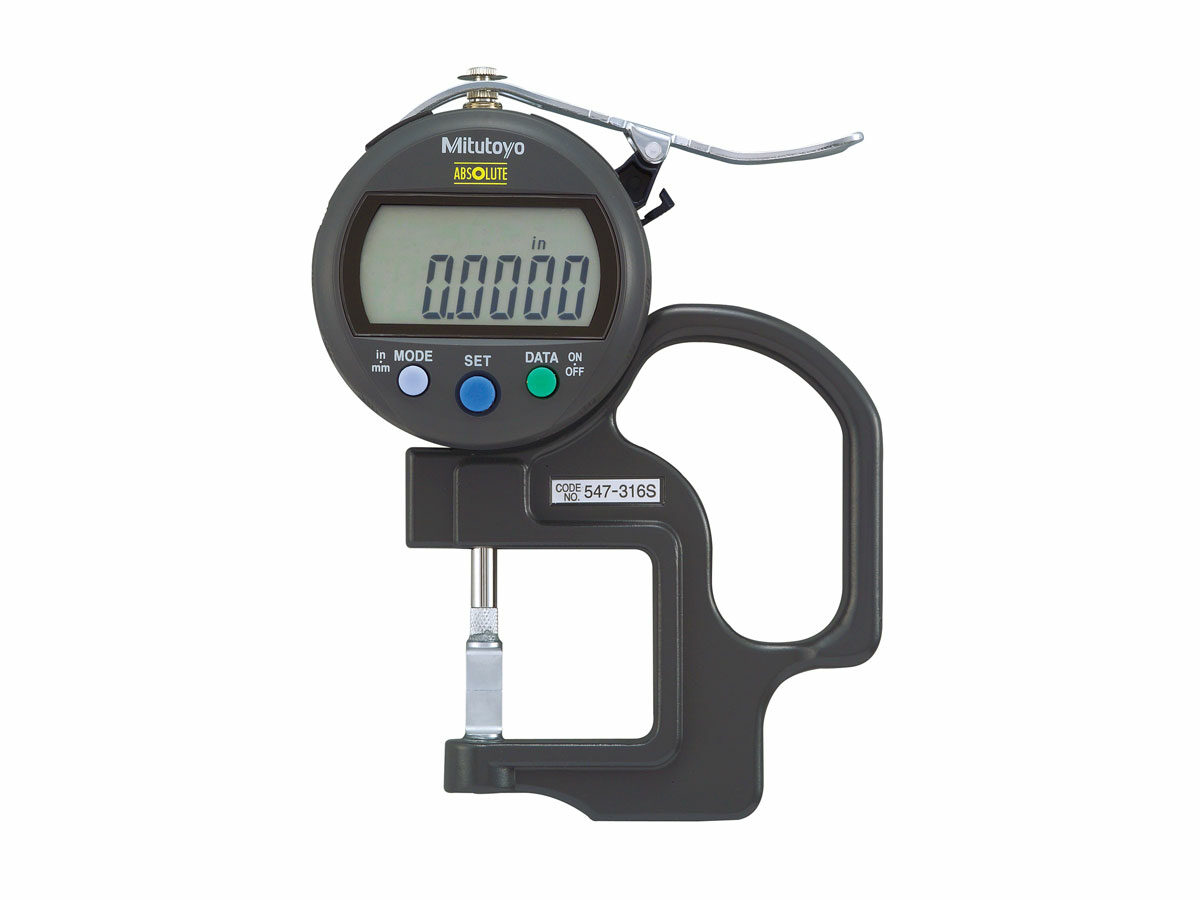

| 547-316S |  | 0-0.47″ / 0-10mm | Digimatic IDC | — |
| 547-516S | — | 0-0.47″ / 0-12mm | Digimatic IDS | — |
Технические характеристики
| Technology: | Digimatic |
|---|
| Units: | Inch, Metric |
|---|
| Resolution: | .0005′ / 0.01mm |
|---|
| Accuracy: | ±0.001′ |
|---|
| SPC Output: | Yes |
|---|
| Measuring Force: | 1.5 or lessN |
|---|
| Display: | LCD |
|---|
| Battery: | SR44 (1pc.) 938882 |
|---|
| Battery life: | Approx. 20,000 hours under normal use |
|---|
| Remarks: | Groove thickness |
|---|
| Required Accessories: | — |
|---|
