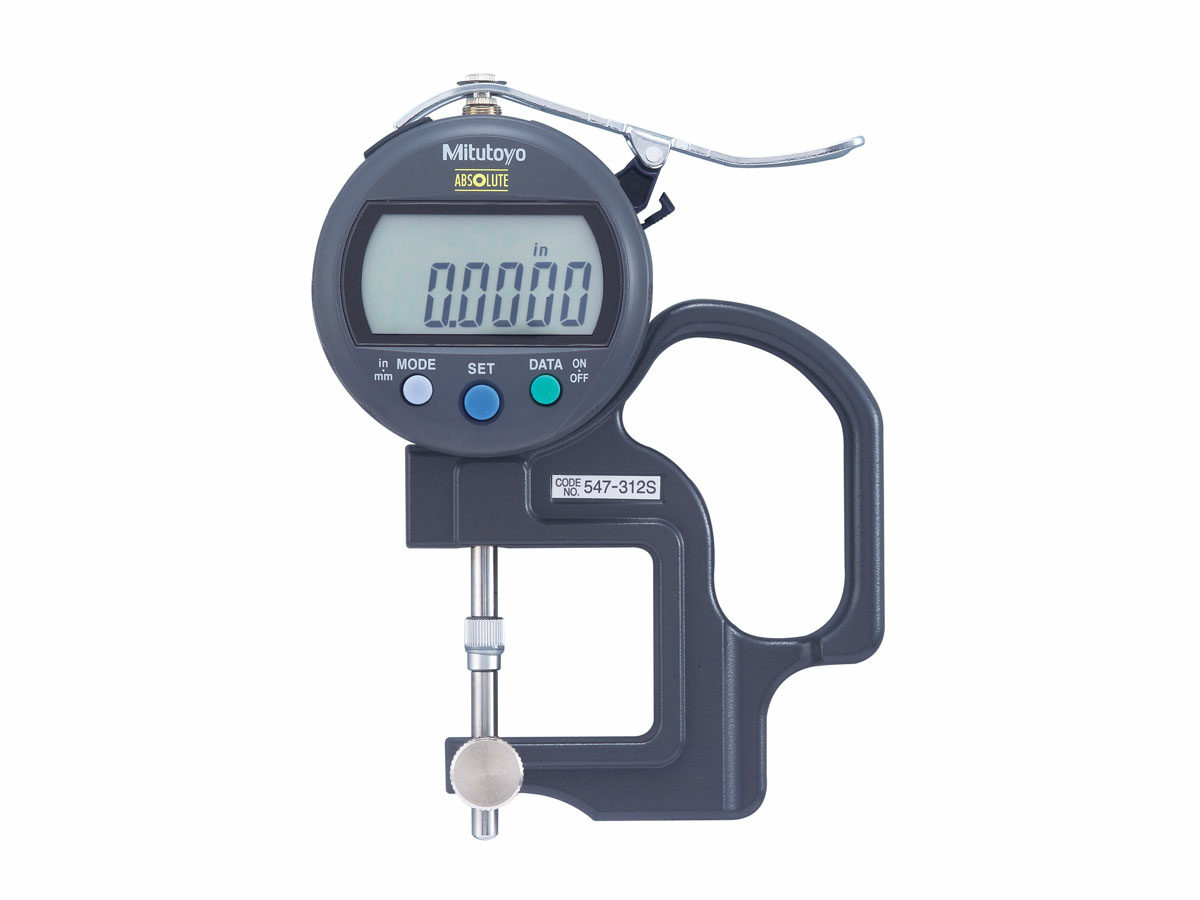

The Mitutoyo lens thickness measurement digital indicator uses a reversible anvil to measure the thickness of various lenses with high accuracy. The indicators» contact points are coated in ceramic for durability and corrosion resistance. The grip handle, easy-to-reach lifting lever and spring-loaded spindle allows for faster, easier measurements without sacrificing accuracy. ty, and the white dial face is easier to read.
- Available in Inch/Metric models
- Available with Digimatic ICS or IDC indicators
- Easy to reach lifting anvil for effortless measurements
- White dial face for easier, precise measurement readings
- Anvil and contact point are made of ceramic for better corrosion resistance
- Measuring force is 1.5N or less
- Crystal is glare-free with a scratch-resistant coating
- Supplied in a fitted plastic case
| Order No.: | Product Image: | Range: | Indicator type: | Optional Accessories: | |
|---|
| 547-312S |  | 0-0.4″ / 0-10mm | Digimatic IDC | — |
| 547-512S | — | 0-0.47″ / 0-12mm | Digimatic IDS | — |
Технические характеристики
| Technology: | Digimatic |
|---|
| Units: | Inch, Metric |
|---|
| Resolution: | 0.0005′ |
|---|
| Accuracy: | ±0.001′ |
|---|
| SPC Output: | Yes |
|---|
| Measuring Force: | 1.5 or lessN |
|---|
| Reverse anvil: | Yes |
|---|
| Display: | LCD |
|---|
| Battery: | SR44 (1pc.) 938883 |
|---|
| Battery life: | Approx. 20,000 hours under normal use |
|---|
| Remarks: | Lens thickness |
|---|
| Required Accessories: | — |
|---|
