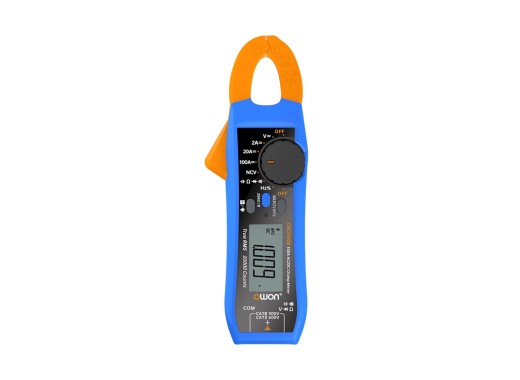

The Owon CM2100B clamp meter is a high-precision current clamp equipped with Bluetooth connectivity. The current clamp has a display resolution of 20.000 counts and can measure AC voltage, DC voltage, AC current, DC current, resistance, capacitance, duty cycle, and frequency. The CM2100B has a compact size and protective adhesive cover to make it very suitable to use on the go. Moreover, the current clamp has an Auto-ranging function that enables fast and easy use. Other functions of the CM2100B include NCV, VFC mode, and relative measurements. Furthermore, the clamp meter has overload protection and a low battery alert. Finally, because the Owon CM2100B has Bluetooth, it can be connected to the PC software via the Owon USB Bluetooth dongle or connected with the Owon mobile app.
Model overview Model CM2100 CM2100B Data recording No Yes Bluetooth No Yes Price 40.5 €40.50 Excl. VAT 57.02 €57.02 Excl. VAT Specifications Display resolution20.000 counts Max. AC voltage600 V Max. DC voltage600 V Max. AC current100 A Max. DC current100 A Resistance200 — 200 M Capacitance 2 nF — 20 mF Max. frequency20.000 Hz Duty cycle 0.1 — 99.9 % Other functionsAuto ranging, Data hold, Diode, Continuity, NCV, VFC, Zero, Relative measurement, Input protection, Overrange alarm, On-off warning Power supply2 x 1.5V AAA batteries True-RMS Yes Display60.000 count, LCD with backlight ConnectivityUSB, Mobile App Jaw capacity17 mm Dimensions182 x 57 x 32 mm Weight0.2 kg Accessories
The CM2100B comes by default with:
- Multimeter lead
- Soft bag
- Bolt driver
