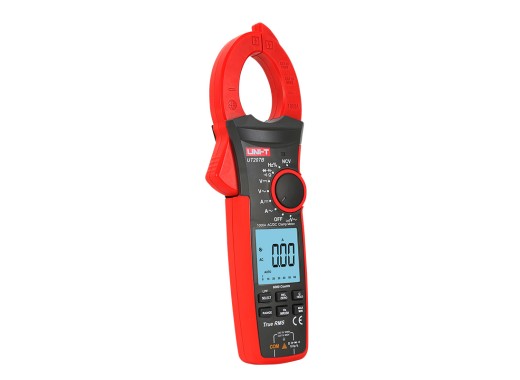

The UNI-T UT207B is a True-RMS current clamp from the UT200 series with an integrated multimeter that can measure AC current/voltage and DC current/voltage up to 1000 A/V. The meter has a 6000-count display with backlight, making it easy to read the measurements and a flashlight for darker spaces. In addition, it is possible to measure resistance, capacitance, frequency, using the supplied test wires and thermocouple. The NCV function allows wires with voltage to be detected quickly, before they can cause any damage. The UT207B features Autorange, which automatically selects the correct measurement range. It is also possible to set the desired measurement range manually. Furthermore inrush current, LPF and LoZ are also available.
The model overview of the current clamps from the UT200 series can be found below.
Model overview Model UT206B UT207B DC current (clamp) Temperature Price 61.98 €61.98 Excl. VAT 70.25 €70.25 Excl. VAT Specifications Display resolution6000 counts AC voltage rangeUp to 1000 V DC voltage rangeUp to 1000 V AC current rangeUp to 1000 A DC current rangeUp to 1000 A Resistance rangeUp to 60.00 M Capacitance range Up to 60.00 mF Low voltage frequency10 Hz — 1 MHz Jaw opening42 mm Other functionsDiode, Continuity, Min/Max record, Peak/Data hold, ZERO mode, auto power off, LoZ, LPF, NCV, inrush current Power supply1.5 V battery x 3 True-RMS Yes Data logging Yes Display2.5′ LCD Dimensions355 x 330 x 315 mm Weight465 g Accessories
The UNI-T UT207B is supplied including:
- 3 x 1.5 V battery
- Carrying pouch
- Test leads
Pros and cons
- Can measure DC current
- Can’t measure temperature
Downloads uni-t-ut207b product flyer
(1.98 MB) Download
