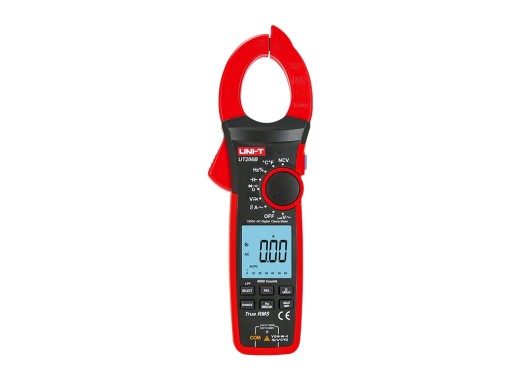

The UNI-T UT206B is a True-RMS current clamp with an integrated multimeter that can measure AC current/voltage and DC voltage up to 1000 A/V. The meter has a 6000-count display with backlight, making it easy to read the measurements and a flashlight for darker spaces. In addition, it is possible to measure resistance, capacitance, frequency and temperature, using the supplied test wires and thermocouple, with the best possible temperature resolution of 0.1 °C. The NCV function allows wires with voltage to be detected quickly, before they can cause any damage. The UT206B features Autorange, which automatically selects the correct measurement range. It is also possible to set the desired measurement range manually. Furthermore inrush current, LPF and LoZ are also available. The UNI-T UT-CS09D is a flexible current clamp sensor that can be connected to this current clamp for more versatility when measuring.
The model overview of the current clamps from the UT200 series can be found below.
Model overview Model UT206B UT207B DC current (clamp) Temperature Price 61.98 €61.98 Excl. VAT 70.25 €70.25 Excl. VAT Specifications Display resolution6000 counts AC voltage0.001 V — 1000 V DC voltage0.1 mV — 1000 V AC current0.01 A — 1000 A (>500 A for 60s) Resistance0.1 — 60.00 M Capacitance 0.01 nF — 60.00 mF Frequency0.01 Hz — 1 MHz Temperature-40 — 1000 ℃ Jaw opening42 mm Other functionsDiode, Continuity, Min/Max record, Peak/Data hold, auto power off, LoZ, LPF, NCV, inrush current Power supply1.5 V battery x 3 True-RMS Yes Data logging Yes Display2.5′ LCD Dimensions355 x 330 x 315 mm Weight465 g Accessories
The UNI-T UT206B is supplied including:
- 3 x 1.5 V battery
- Carrying pouch
- Test leads
- Thermocouple type K
Pros and cons
- High temperature resolution of at best 0.1 °C
Downloads UNI-T UT200 Manual
(7.48 MB) Download
UNI-T UT200 datasheet
(421.53 KB) Download
