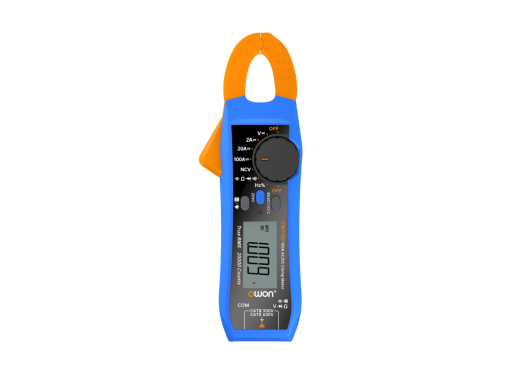

The Owon CM2100 clamp meter is a high-precision current clamp because the clamp has a display resolution of 20.000 counts. This current clamp can measure AC voltage, DC voltage, AC current, DC current, resistance, capacitance, duty cycle, and frequency. The CM2100 has a compact size and protective adhesive cover to make it very suitable to use on the go. Moreover, the current clamp has an Auto-ranging function that enables fast and easy use. Other functions of the CM2100B include NCV, VFC mode, and relative measurements. Furthermore, the clamp meter has overload protection and a low battery alert. Model overview Model CM2100 CM2100B Data recording No Yes Bluetooth No Yes Price 40.5 €40.50 Excl. VAT 57.02 €57.02 Excl. VAT Specifications Display resolution20.000 counts Max. AC voltage600 V Max. DC voltage600 V Max. AC current100 A Max. DC current100 A Resistance200 — 200 M Capacitance 2 nF — 20 mF Max. frequency20.000 Hz Duty cycle 0.1 — 99.9 % Other functionsAuto ranging, Data hold, Diode, Continuity, NCV, VFC, Zero, Relative measurement, Input protection, Overrange alarm, On-off warning Power supply2 x 1.5V AAA batteries True-RMS Yes Display60.000 count, LCD with backlight Jaw capacity17 mm Dimensions182 x 57 x 32 mm Weight0.2 kg Accessories
The CM2100 comes by default with:
- Multimeter lead
- Soft bag
- Bolt driver
